  15. Push Button, 22mm, Black, Metal Bezel

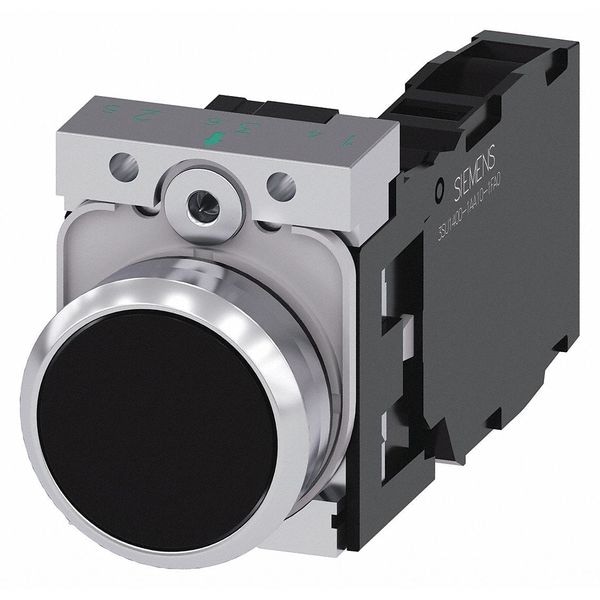

Siemens Push Button, 22mm, Black, Metal Bezel 3SU1150-0AB10-1FA0 - main

Push Button, 22mm, Black, Metal Bezel

  • Mfr # 3SU1150-0AB10-1FA0

  • Zoro # G3040532

product price: $53.79
/ea

Key Features

Material
metal
Color
Black
Head Material
Plastic
Type of Operator
Flush Button
Standards
REACH, WEEE (2012/19/EU)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3SU1150-0AB10-1FA0
Zoro #
G3040532
UPC #
804766335181
Country of Origin
Germany

Dimensions

Size
22 mm
Overall Width
1.18 in
Manufacturer Warranty Length
1 yr
Panel Cutout Diameter
22 mm
Overall Height
1.57 in
Overall Depth
3.26 in

Details

Item
Flush Push Button Operator
Material
metal
Color
Black
Head Material
Plastic
Type of Operator
Flush Button
Standards
REACH, WEEE (2012/19/EU)
Bezel
Metal
Basic Material
Zinc Alloy
Action
Momentary
Contact Form
1NO/1NC
Terminal Connection
Screw
IP Rating
IP66, IP67, IP69, IP69K
Contact Rating
10A @ 600V AC, 1A @ 600V DC
Number of Operators
1
NEMA Contact Rating Designation
A600/R300
NEMA Rating
1, 12, 2, 3, 3R, 4, 4X
Features
Possible to Select 1 to 4 Positions with ID Keys, Four ID Keys with Different Codes
Product Type
Push Button Operators
Application
Complete unit
Type
Pushbuttons
Bezel Material
Metal
Voltage rating
5
Operating cycles
10000000
Special Features
Yes
Environmental Conditions
-25
Operating Temperature
-25°C to 70°C
Contact configuration
36526
Number of Poles
1
Actuator
Button, flat
Insulation
IP66, IP67, IP69(IP69K)
Connection
screw-type terminals
Mounting
front plate mounting
NEMA Enclosure Rating
1, 12, 2, 3, 3R, 4, 4X
Operating Temperature - Maximum
158 Degrees F
DC Contact Rating
1 A @ 600 V
Operator Illumination
Non-Illuminated
Operator Voltage Rating - Maximum
500 V
Number of Indicator Lights
0
Push Button Style
Flush
AC Contact Rating
10 A @ 600 V
Mechanical Operating Durability
1.00 x 10^7
Series
3SU
Operator Material
Zinc Alloy
Head Color
Black
Operating Temperature - Minimum
-13 Degrees F

Description

Flush Push Button Operator, 22 mm, Momentary Action, Flush Button Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Metal, Color Black, Contact Rating 10A @ 600V AC, 1A @ 600V DC, NEMA Contact Rating Designation A600/R300, Number of Operators 1, NEMA Rating 1, 12, 2, 3, 3R, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Legend Not Applicable, Standards REACH, WEEE (2012/19/EU), Terminal Connection Screw
