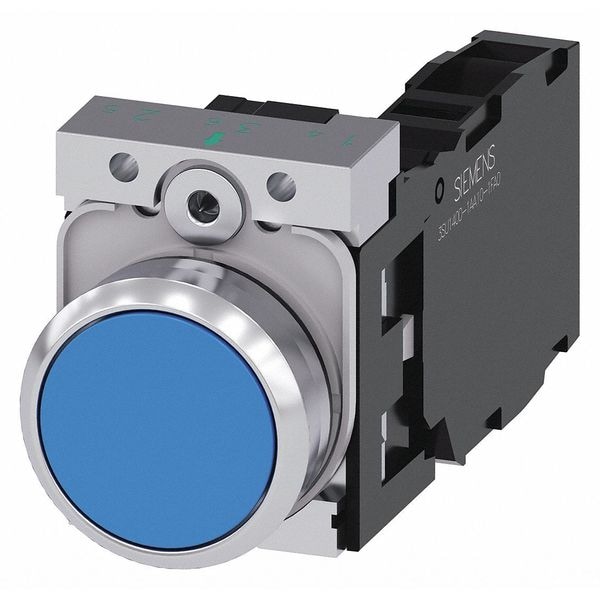

Siemens Push Button, 22mm, Blue, Metal Bezel 3SU1150-0AB50-1FA0 - main

Push Button, 22mm, Blue, Metal Bezel

  • Mfr # 3SU1150-0AB50-1FA0

  • Zoro # G3040943

product price: $28.39
/ea

Key Features

Material
metal
Color
Blue
IP Rating
IP66, IP67, IP69, IP69K
Number of Operators
1
Contact Form
1NO/1NC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3SU1150-0AB50-1FA0
Zoro #
G3040943
UPC #
804766358999
Country of Origin
Germany

Dimensions

Size
22 mm
Overall Width
5.7 in
Manufacturer Warranty Length
1 yr
Overall Height
1.25 in
Overall Depth
7.8 in
Panel Cutout Diameter
22 mm

Details

Item
Flush Push Button Operator
Material
metal
Color
Blue
IP Rating
IP66, IP67, IP69, IP69K
Number of Operators
1
Contact Form
1NO/1NC
Type of Operator
Flush Button
Basic Material
Zinc Alloy
NEMA Contact Rating Designation
A600/R300
Terminal Connection
Screw
NEMA Rating
1, 12, 2, 3, 3R, 4, 4X
Standards
REACH, WEEE (2012/19/EU)
Bezel
Metal
Action
Momentary
Head Material
Plastic
Contact Rating
10A @ 600V AC, 1A @ 600V DC
Features
Possible to Select 1 to 4 Positions with ID Keys, Four ID Keys with Different Codes
Product Type
Push Button Operators
Application
Complete unit
Bezel Material
Metal
Type
Pushbuttons
Special Features
Yes
Insulation
IP66, IP67, IP69(IP69K)
Mounting
front plate mounting
Number of Poles
1
Actuator
Button, flat
Contact configuration
36526
Operating Temperature
-25°C to 70°C
Connection
screw-type terminals
Environmental Conditions
-25
Voltage rating
5
Operating cycles
10000000
Operator Voltage Rating - Maximum
500 V
Operator Material
Zinc Alloy
Mechanical Operating Durability
1.00 x 10^7
NEMA Enclosure Rating
1, 12, 2, 3, 3R, 4, 4X
Operator Illumination
Non-Illuminated
Operating Temperature - Minimum
-13 Degrees F
Number of Indicator Lights
0
Series
3SU
AC Contact Rating
10 A @ 600 V
Head Color
Blue
Operating Temperature - Maximum
158 Degrees F
Push Button Style
Flush
DC Contact Rating
1 A @ 600 V

Description

Flush Push Button Operator, 22 mm, Momentary Action, Flush Button Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Metal, Color Blue, Contact Rating 10A @ 600V AC, 1A @ 600V DC, NEMA Contact Rating Designation A600/R300, Number of Operators 1, NEMA Rating 1, 12, 2, 3, 3R, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Legend Not Applicable, Standards REACH, WEEE (2012/19/EU), Terminal Connection Screw
