  15. Push Button, 22mm, Blue, Plastic Bezel

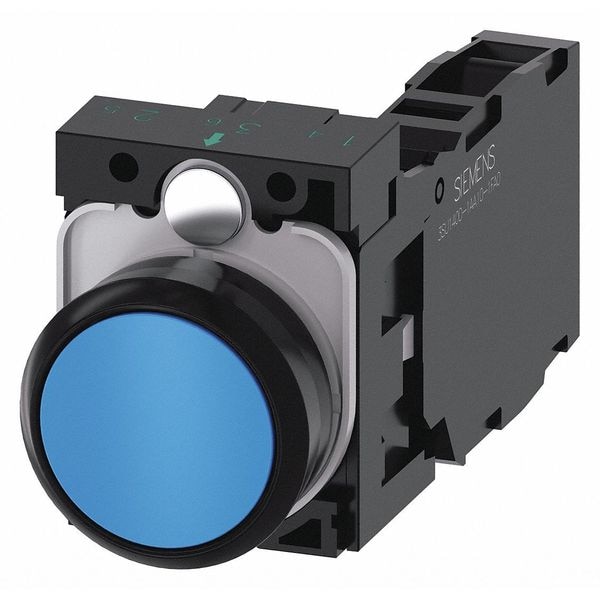

Siemens Push Button, 22mm, Blue, Plastic Bezel 3SU1100-0AB50-1FA0 - main

Push Button, 22mm, Blue, Plastic Bezel

  • Mfr # 3SU1100-0AB50-1FA0

  • Zoro # G3040849

product price: $22.39
/ea

Key Features

Material
Plastic
Color
Blue
IP Rating
IP66, IP67, IP69, IP69K
NEMA Rating
1, 12, 2, 3, 3R, 4, 4X
Bezel
Plastic
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
3SU1100-0AB50-1FA0
Zoro #
G3040849
UPC #
804766358906
Country of Origin
Germany

Dimensions

Size
22 mm
Overall Depth
3.26 in
Overall Width
1.18 in
Overall Height
1.57 in
Manufacturer Warranty Length
1 yr
Panel Cutout Diameter
22 mm

Details

Item
Flush Push Button Operator
Material
Plastic
Color
Blue
IP Rating
IP66, IP67, IP69, IP69K
NEMA Rating
1, 12, 2, 3, 3R, 4, 4X
Bezel
Plastic
Standards
REACH, WEEE (2012/19/EU)
Terminal Connection
Screw
Type of Operator
Flush Button
Basic Material
Polyamide
Number of Operators
1
Action
Momentary
Contact Form
1NO/1NC
Contact Rating
10A @ 600V AC, 1A @ 600V DC
Head Material
Plastic
NEMA Contact Rating Designation
A600/R300
Features
Possible to Select 1 to 4 Positions with ID Keys, Four ID Keys with Different Codes
Product Type
Push Button Operators
Bezel Material
Plastic
Type
Pushbuttons
Application
Complete unit
Insulation
IP66, IP67, IP69(IP69K)
Environmental Conditions
-25
Voltage rating
5
Contact configuration
36526
Mounting
front plate mounting
Actuator
Button, flat
Operating Temperature
-25°C to 70°C
Connection
screw-type terminals
Special Features
Yes
Number of Poles
1
Operating cycles
10000000
AC Contact Rating
10 A @ 600 V
Operating Temperature - Minimum
-13 Degrees F
NEMA Enclosure Rating
1, 12, 2, 3, 3R, 4, 4X
Head Color
Blue
Number of Indicator Lights
0
DC Contact Rating
1 A @ 600 V
Push Button Style
Flush
Mechanical Operating Durability
1.00 x 10^7
Operator Material
Polyamide
Operator Illumination
Non-Illuminated
Series
3SU
Operating Temperature - Maximum
158 Degrees F
Operator Voltage Rating - Maximum
500 V

Description

Flush Push Button Operator, 22 mm, Momentary Action, Flush Button Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Plastic, Color Blue, Contact Rating 10A @ 600V AC, 1A @ 600V DC, NEMA Contact Rating Designation A600/R300, Number of Operators 1, NEMA Rating 1, 12, 2, 3, 3R, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Legend Not Applicable, Standards REACH, WEEE (2012/19/EU), Terminal Connection Screw
