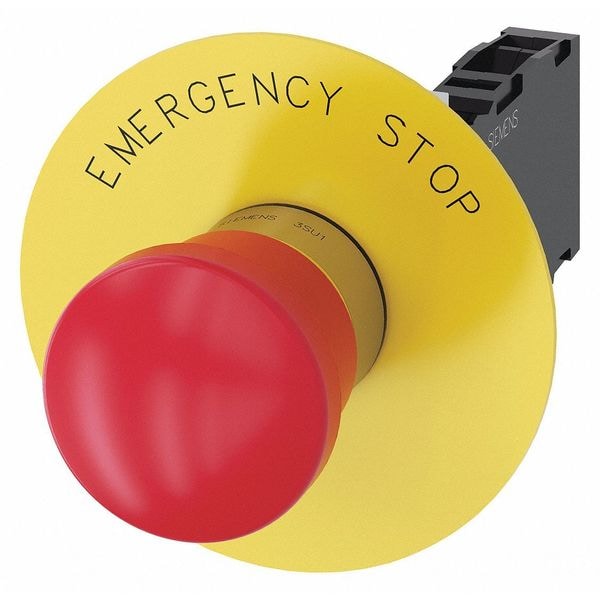

Siemens Push Button, 22mm, Red, Metal Bezel 3SU1150-1HA20-1FG0 - main

Push Button, 22mm, Red, Metal Bezel

  • Mfr # 3SU1150-1HA20-1FG0

  • Zoro # G3040751

product price: $65.45
/ea

Key Features

Material
metal
Color
Red
Number of Operators
1
Terminal Connection
Screw
IP Rating
IP67, IP69K
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3SU1150-1HA20-1FG0
Zoro #
G3040751
UPC #
804766359194
Country of Origin
Germany

Dimensions

Size
22 mm
Overall Depth
8 in
Overall Width
5.2 in
Panel Cutout Diameter
22 mm
Mushroom Head Diameter
40 mm
Overall Height
2 in
Manufacturer Warranty Length
1 yr

Details

Item
Emergency Stop Push Button
Material
metal
Color
Red
Number of Operators
1
Terminal Connection
Screw
IP Rating
IP67, IP69K
Legend
Emergency Stop
NEMA Contact Rating Designation
A600/R300
Basic Material
Zinc Alloy
Standards
REACH, WEEE (2012/19/EU)
Bezel
Metal
Contact Rating
10A @ 600V AC, 1A @ 600V DC
NEMA Rating
1, 12, 2, 3, 3R, 4, 4X
Contact Form
1NO/1NC
Type of Operator
40mm Mushroom Head
Head Material
Plastic
Action
Maintained
Features
Possible to Select 1 to 4 Positions with ID Keys, Four ID Keys with Different Codes
Product Type
Emergency Stop Push Buttons
Bezel Material
Metal
Type of button
Mushroom
Degree of protection (IP)
IP67/IP69K
Number of contacts as normally closed contact
1
Switching function latching
No
Number of command positions
1
Number of contacts as change-over contact
0
Colour button
Red
With front ring
No
Number of contacts as normally open contact
1
Operating Temperature - Maximum
158 Degrees F
Legend Color
Black
NEMA Enclosure Rating
1, 12, 2, 3, 3R, 4, 4X
Legend Background Color
Yellow
Operator Material
Zinc Alloy
AC Contact Rating
10 A @ 600 V
Operating Temperature - Minimum
-13 Degrees F
Mechanical Operating Durability
3.00 x 10^5
Series
3SU
Operator Voltage Rating - Maximum
500 V
Push Button Style
Mushroom Head
DC Contact Rating
1 A @ 600 V
Number of Indicator Lights
0
Maintained Action Release
Push/Pull
Operator Illumination
Non-Illuminated
Head Color
Red

Description

Emergency Stop Push Button, 22 mm, Maintained Action, 40mm Mushroom Head Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Metal, Color Red, Contact Rating 10A @ 600V AC, 1A @ 600V DC, NEMA Contact Rating Designation A600/R300, Number of Operators 1, NEMA Rating 1, 12, 2, 3, 3R, 4, 4X, IP Rating IP67, IP69K, Legend Emergency Stop, Standards REACH, WEEE (2012/19/EU), Terminal Connection Screw
