  15. Push Button, 22mm, Red, Plastic Bezel, IP Rating: 69K

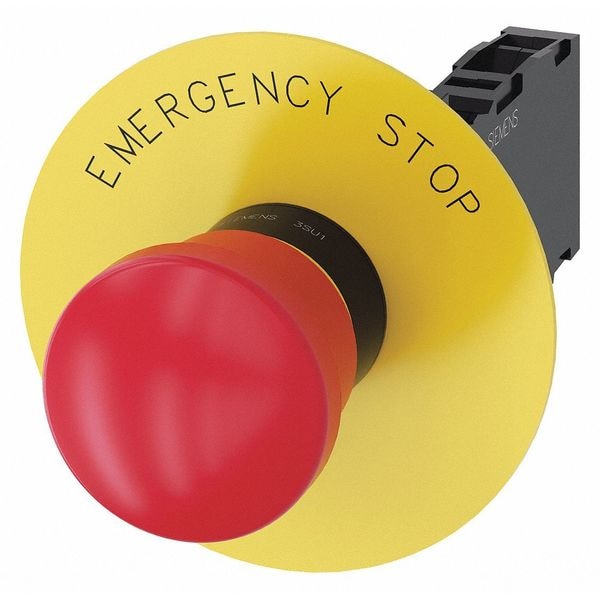

Siemens Push Button, 22mm, Red, Plastic Bezel, IP Rating: 69K 3SU1100-1HA20-1FG0 - main

Push Button, 22mm, Red, Plastic Bezel, IP Rating: 69K

  • Mfr # 3SU1100-1HA20-1FG0

  • Zoro # G3040882

product price: $56.89
/ea

Key Features

Material
Plastic
Color
Red
Size
22 mm
Contact Form
1NO/1NC
Basic Material
Polyamide
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3SU1100-1HA20-1FG0
Zoro #
G3040882
UPC #
804766358944
Country of Origin
Germany

Dimensions

Size
22 mm
Overall Height
1 in
Manufacturer Warranty Length
1 yr
Overall Depth
6.9 in
Panel Cutout Diameter
22 mm
Overall Width
5.4 in
Mushroom Head Diameter
40 mm

Details

Item
Emergency Stop Push Button
Material
Plastic
Color
Red
Contact Form
1NO/1NC
Basic Material
Polyamide
Legend
Emergency Stop
IP Rating
IP67, IP69K
Head Material
Plastic
Type of Operator
40mm Mushroom Head
Action
Maintained
NEMA Contact Rating Designation
A600/R300
NEMA Rating
1, 12, 2, 3, 3R, 4, 4X
Contact Rating
10A @ 600V AC, 1A @ 600V DC
Terminal Connection
Screw
Number of Operators
1
Standards
REACH, WEEE (2012/19/EU)
Bezel
Plastic
Features
Possible to Select 1 to 4 Positions with ID Keys, Four ID Keys with Different Codes
Product Type
Emergency Stop Push Buttons
Bezel Material
Plastic
Number of contacts as normally closed contact
1
Number of contacts as normally open contact
1
Switching function latching
No
Type of button
Mushroom
Colour button
Red
Degree of protection (IP)
IP67/IP69K
Number of contacts as change-over contact
0
With front ring
No
Number of command positions
1
Mechanical Operating Durability
3.00 x 10^5
Operating Temperature - Maximum
158 Degrees F
DC Contact Rating
1 A @ 600 V
Maintained Action Release
Push/Pull
Legend Background Color
Yellow
Operator Material
Polyamide
NEMA Enclosure Rating
1, 12, 2, 3, 3R, 4, 4X
Number of Indicator Lights
0
Operating Temperature - Minimum
-13 Degrees F
Legend Color
Black
Push Button Style
Mushroom Head
Series
3SU
Operator Illumination
Non-Illuminated
Operator Voltage Rating - Maximum
500 V
Head Color
Red
AC Contact Rating
10 A @ 600 V

Description

Emergency Stop Push Button, 22 mm, Maintained Action, 40mm Mushroom Head Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Plastic, Color Red, Contact Rating 10A @ 600V AC, 1A @ 600V DC, NEMA Contact Rating Designation A600/R300, Number of Operators 1, NEMA Rating 1, 12, 2, 3, 3R, 4, 4X, IP Rating IP67, IP69K, Legend Emergency Stop, Standards REACH, WEEE (2012/19/EU), Terminal Connection Screw
