  15. Push Button, 22mm, White, Metal Bezel

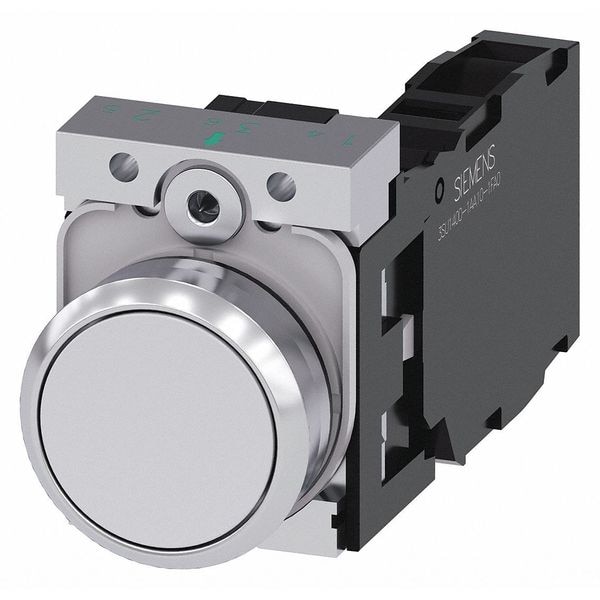

Siemens Push Button, 22mm, White, Metal Bezel 3SU1150-0AB60-1FA0 - main

Push Button, 22mm, White, Metal Bezel

  • Mfr # 3SU1150-0AB60-1FA0

  • Zoro # G3040961

product price: $21.89
/ea

Key Features

Material
metal
Color
White
Contact Form
1NO/1NC
Bezel
Metal
IP Rating
IP66, IP67, IP69, IP69K
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3SU1150-0AB60-1FA0
Zoro #
G3040961
UPC #
804766359002
Country of Origin
Germany

Dimensions

Size
22 mm
Overall Height
1.57 in
Overall Depth
3.26 in
Overall Width
1.18 in
Manufacturer Warranty Length
1 yr
Panel Cutout Diameter
22 mm

Details

Item
Flush Push Button Operator
Material
metal
Color
White
Contact Form
1NO/1NC
Bezel
Metal
IP Rating
IP66, IP67, IP69, IP69K
Contact Rating
10A @ 600V AC, 1A @ 600V DC
NEMA Contact Rating Designation
A600/R300
Action
Momentary
Terminal Connection
Screw
Number of Operators
1
Type of Operator
Flush Button
NEMA Rating
1, 12, 2, 3, 3R, 4, 4X
Basic Material
Zinc Alloy
Head Material
Plastic
Standards
REACH, WEEE (2012/19/EU)
Features
Possible to Select 1 to 4 Positions with ID Keys, Four ID Keys with Different Codes
Product Type
Push Button Operators
Bezel Material
Metal
Type
Pushbuttons
Application
Complete unit
Actuator
Button, flat
Special Features
Yes
Insulation
IP66, IP67, IP69(IP69K)
Connection
screw-type terminals
Operating cycles
10000000
Environmental Conditions
-25
Voltage rating
5
Contact configuration
36526
Number of Poles
1
Operating Temperature
-25°C to 70°C
Mounting
front plate mounting
Series
3SU
Operator Illumination
Non-Illuminated
Operator Voltage Rating - Maximum
500 V
Head Color
White
Mechanical Operating Durability
1.00 x 10^7
Operator Material
Zinc Alloy
Number of Indicator Lights
0
DC Contact Rating
1 A @ 600 V
Operating Temperature - Minimum
-13 Degrees F
Push Button Style
Flush
Operating Temperature - Maximum
158 Degrees F
AC Contact Rating
10 A @ 600 V
NEMA Enclosure Rating
1, 12, 2, 3, 3R, 4, 4X

Description

Flush Push Button Operator, 22 mm, Momentary Action, Flush Button Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Metal, Color White, Contact Rating 10A @ 600V AC, 1A @ 600V DC, NEMA Contact Rating Designation A600/R300, Number of Operators 1, NEMA Rating 1, 12, 2, 3, 3R, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Legend Not Applicable, Standards REACH, WEEE (2012/19/EU), Terminal Connection Screw
