  12. /
  13. Push Button Accessories
  14. /
  15. Push Button, 22mm, White, Plastic Bezel

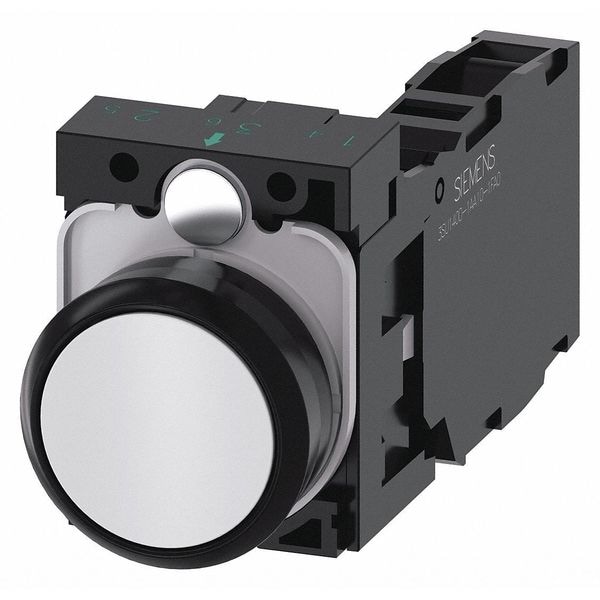

Siemens Push Button, 22mm, White, Plastic Bezel 3SU1100-0AB60-1FA0 - main

Push Button, 22mm, White, Plastic Bezel

  • Mfr # 3SU1100-0AB60-1FA0

  • Zoro # G3040873

product price: $21.69
/ea

Key Features

Material
Plastic
Color
White
Type of Operator
Flush Button
Head Material
Plastic
Contact Form
1NO/1NC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3SU1100-0AB60-1FA0
Zoro #
G3040873
UPC #
804766358913
Country of Origin
Germany

Dimensions

Size
22 mm
Overall Height
1.57 in
Manufacturer Warranty Length
1 yr
Overall Depth
3.26 in
Overall Width
1.18 in
Panel Cutout Diameter
22 mm

Details

Item
Flush Push Button Operator
Material
Plastic
Color
White
Type of Operator
Flush Button
Head Material
Plastic
Contact Form
1NO/1NC
NEMA Contact Rating Designation
A600/R300
Basic Material
Polyamide
Number of Operators
1
Contact Rating
10A @ 600V AC, 1A @ 600V DC
IP Rating
IP66, IP67, IP69, IP69K
Bezel
Plastic
Action
Momentary
Terminal Connection
Screw
Standards
REACH, WEEE (2012/19/EU)
NEMA Rating
1, 12, 2, 3, 3R, 4, 4X
Features
Possible to Select 1 to 4 Positions with ID Keys, Four ID Keys with Different Codes
Product Type
Push Button Operators
Bezel Material
Plastic
Application
Complete unit
Type
Pushbuttons
Number of Poles
1
Connection
screw-type terminals
Mounting
front plate mounting
Actuator
Button, flat
Contact configuration
36526
Voltage rating
5
Insulation
IP66, IP67, IP69(IP69K)
Operating cycles
10000000
Operating Temperature
-25°C to 70°C
Special Features
Yes
Environmental Conditions
-25
Mechanical Operating Durability
1.00 x 10^7
Series
3SU
DC Contact Rating
1 A @ 600 V
Number of Indicator Lights
0
Push Button Style
Flush
Operating Temperature - Maximum
158 Degrees F
Head Color
White
Operator Voltage Rating - Maximum
500 V
Operator Material
Polyamide
AC Contact Rating
10 A @ 600 V
Operator Illumination
Non-Illuminated
Operating Temperature - Minimum
-13 Degrees F
NEMA Enclosure Rating
1, 12, 2, 3, 3R, 4, 4X

Description

Flush Push Button Operator, 22 mm, Momentary Action, Flush Button Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Plastic, Color White, Contact Rating 10A @ 600V AC, 1A @ 600V DC, NEMA Contact Rating Designation A600/R300, Number of Operators 1, NEMA Rating 1, 12, 2, 3, 3R, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Legend Not Applicable, Standards REACH, WEEE (2012/19/EU), Terminal Connection Screw
