  15. Push Button, 22mm, Yellow, Metal Bezel

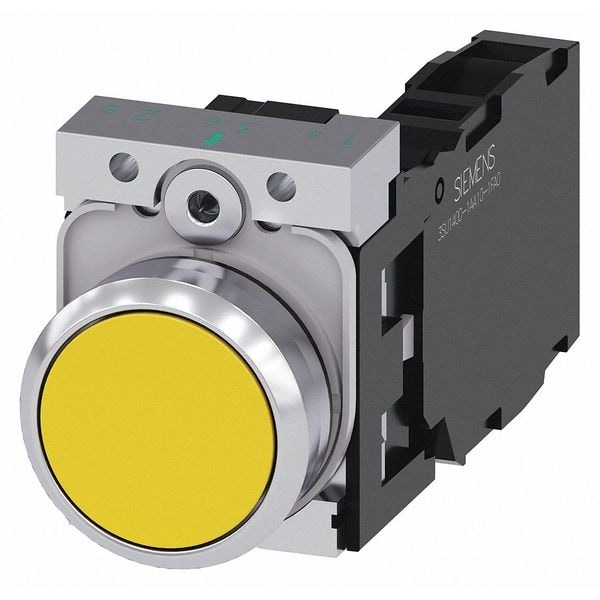

Siemens Push Button, 22mm, Yellow, Metal Bezel 3SU1150-0AB30-1FA0 - main

Push Button, 22mm, Yellow, Metal Bezel

  • Mfr # 3SU1150-0AB30-1FA0

  • Zoro # G3040803

product price: $26.59
/ea

Key Features

Material
metal
Color
Yellow
Action
Momentary
Basic Material
Zinc Alloy
Contact Rating
10A @ 600V AC, 1A @ 600V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3SU1150-0AB30-1FA0
Zoro #
G3040803
UPC #
804766359149
Country of Origin
Germany

Dimensions

Size
22 mm
Overall Depth
3.26 in
Overall Height
1.57 in
Manufacturer Warranty Length
1 yr
Overall Width
1.18 in
Panel Cutout Diameter
22 mm

Details

Item
Flush Push Button Operator
Material
metal
Color
Yellow
Action
Momentary
Basic Material
Zinc Alloy
Contact Rating
10A @ 600V AC, 1A @ 600V DC
NEMA Contact Rating Designation
A600/R300
Contact Form
1NO/1NC
NEMA Rating
1, 12, 2, 3, 3R, 4, 4X
Type of Operator
Flush Button
Standards
REACH, WEEE (2012/19/EU)
Head Material
Plastic
Number of Operators
1
Terminal Connection
Screw
IP Rating
IP66, IP67, IP69, IP69K
Bezel
Metal
Features
Possible to Select 1 to 4 Positions with ID Keys, Four ID Keys with Different Codes
Product Type
Push Button Operators
Type
Pushbuttons
Bezel Material
Metal
Application
Complete unit
Insulation
IP66, IP67, IP69(IP69K)
Operating cycles
10000000
Operating Temperature
-25°C to 70°C
Voltage rating
5
Mounting
front plate mounting
Actuator
Button, flat
Environmental Conditions
-25
Special Features
Yes
Number of Poles
1
Connection
screw-type terminals
Contact configuration
36526
DC Contact Rating
1 A @ 600 V
Operator Illumination
Non-Illuminated
Operator Material
Zinc Alloy
Series
3SU
Head Color
Yellow
Operating Temperature - Minimum
-13 Degrees F
Push Button Style
Flush
NEMA Enclosure Rating
1, 12, 2, 3, 3R, 4, 4X
Operating Temperature - Maximum
158 Degrees F
Mechanical Operating Durability
1.00 x 10^7
Number of Indicator Lights
0
Operator Voltage Rating - Maximum
500 V
AC Contact Rating
10 A @ 600 V

Description

Flush Push Button Operator, 22 mm, Momentary Action, Flush Button Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Metal, Color Yellow, Contact Rating 10A @ 600V AC, 1A @ 600V DC, NEMA Contact Rating Designation A600/R300, Number of Operators 1, NEMA Rating 1, 12, 2, 3, 3R, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Legend Not Applicable, Standards REACH, WEEE (2012/19/EU), Terminal Connection Screw
