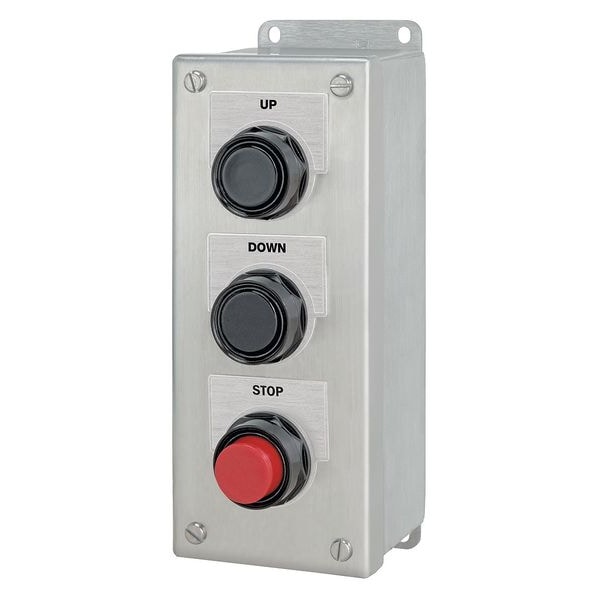

Siemens Push Button Control Station, Up/Down/Stop 52C332S - main

Push Button Control Station, Up/Down/Stop

  • Mfr # 52C332S

  • Zoro # G0549701

product price: $561.99
/ea
Free Shipping & Returns

Key Features

Contact Form
3NO/3NC
Legend
Up/Down/Stop
Type of Operator
Flush Button/Raised Button
Number of Pilot Lights
0
Number of Operators
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
52C332S
Zoro #
G0549701
UPC #
783087626805
Country of Origin
United States

Dimensions

Size
30 mm
Depth
9 in
Width
3.47 in
Height
4.12 in
Overall Width
3.47 in
Hub Size - Maximum
1 3/16 in
Panel Cutout Diameter
30 mm
Overall Height
9 in
Overall Depth
2.75 in

Details

Item
Control Station
Contact Form
3NO/3NC
Legend
Up/Down/Stop
Type of Operator
Flush Button/Raised Button
Number of Pilot Lights
0
Number of Operators
3
NEMA Rating
4X
Series
Class 52
Standards
CSA LR6535, UL E22655
Contact Rating
5A @ 600V AC
Action
Momentary/Momentary/Momentary
Mechanical Interlock
No
Operator Color
(2) Black, Red
IP Rating
IP66
NEMA Contact Rating Designation
B600
Enclosure Color
Gray
Mounting
Wall
Enclosure Material
Stainless Steel
DC Contact Rating
Not Rated
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D
AC Contact Rating
5 A @ 600 V
NEMA Enclosure Rating
4, 4X
Product Type
Control Station
Operating Temperature - Minimum
31 Degrees F
Operator Configuration
(3) Flush Push Buttons
Resistance Properties
Corrosion Resistant, Oil and Grease Resistant, Waterproof
Includes Mechanical Interlock
No Mechanical Interlock Included.
Operating Temperature - Maximum
158 Degrees F

Description

Control Station, Number of Operators 3, Number of Pilot Lights 0, Size 30 mm, Legend Up/Down/Stop, Type of Operator Flush Button/Raised Button, Action Momentary/Momentary/Momentary, Operator Color (2) Black, Red, Contact Form 3NO/3NC, Mechanical Interlock No, NEMA Rating 4X, Contact Rating 5A @ 600V AC, NEMA Contact Rating Designation B600, IP Rating IP66, Mounting Wall, Height 4.12 in, Width 3.47 in, Depth 9 in, Enclosure Material Stainless Steel, Enclosure Color Gray
