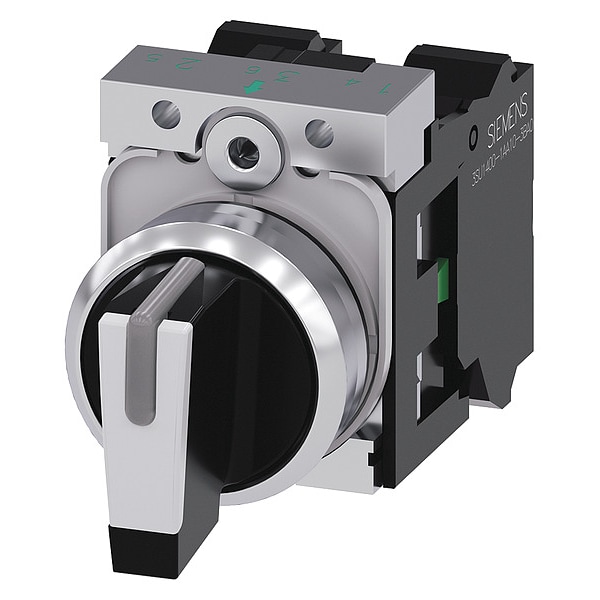

Siemens Selector switch, illuminable, 22 mm, rou, Bezel Color: Silver 3SU11502BM603NA0 - main

Selector switch, illuminable, 22 mm, rou, Bezel Color: Silver

  • Mfr # 3SU11502BM603NA0

  • Zoro # G8182860

product price: $69.29
/ea

Key Features

Size
22 mm
Basic Material
Metal
Type of Operator
Selector Switch
Contact Form
1NO
Action
Momentary/Momentary/Momentary
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3SU11502BM603NA0
Zoro #
G8182860
UPC #
804766072291
Country of Origin
Germany

Dimensions

Size
22 mm
Overall Height
1.95 in
Overall Width
2 in
Overall Depth
4 in
Panel Cutout Diameter
22 mm

Details

Item
Selector Switch
Basic Material
Metal
Type of Operator
Selector Switch
Contact Form
1NO
Action
Momentary/Momentary/Momentary
Cam
No Cam Included
Operator Head Material
Plastic
Color
Black, Gray, White
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Position
3
Bezel Color
Silver
Standards
REACH Art. 33, RoHS, WEEE (2012/19/EU)
Includes
Holder
AC Contact Rating
10 A @ 500 V
Lamp Module Type
No Lamp Module Included
IP Rating
IP20, IP66, IP67, IP69, IP69K
Lamp Type
No Lamp Module Included
Series
3SU1150
DC Contact Rating
5 A @ 500 V
With front ring
Yes
Switching function latching
No
Type of control element
Toggle
Number of contacts as normally open contact
2
Number of contacts as change-over contact
0
Spring-return
Yes
Number of contacts as normally closed contact
0
Degree of protection (IP)
IP67/IP69K
Colour button
White
Suitable for illumination
Yes
Number of switch positions
3
Type of electric connection
Spring clamp connection
Switch Function @ 3rd Position
On
Operator Head Color
White
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Switch Function @ 1st Position
On
Hazardous Location Specification
Not Rated
Switch Function @ 4th Position
No Fourth Position
Operator Illumination
Illuminated
Contact Block Material
Metal
Operator Head Type
Short-Handled Knob
Number of Positions
3
Switch Function @ 2nd Position
Off

Description

Selector Switch, 22 mm, 3 Position, Momentary/Momentary/Momentary Action, 1NO Contact Form, Type of Operator Selector Switch, Color Black, Gray, White, Operator Head Material Plastic, Basic Material Metal, Bezel Color Silver, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, IP Rating IP20, IP66, IP67, IP69, IP69K, Cam No Cam Included, Standards REACH Art. 33, RoHS, WEEE (2012/19/EU), Includes Holder
