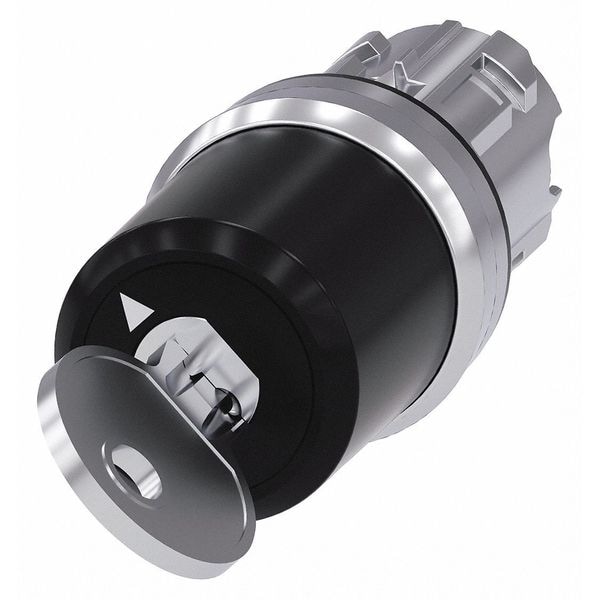

Siemens Selector Switch Operator, 22mm Sz, No Cam 3SU1050-5BC01-0AA0 - main

Selector Switch Operator, 22mm Sz, No Cam

  • Mfr # 3SU1050-5BC01-0AA0

  • Zoro # G3040313

product price: $137.99
/ea
Free Shipping & Returns

Key Features

Action
Momentary/Momentary
Size
22 mm
Basic Material
Metal
NEMA Rating
1, 12, 2, 3, 3R, 4, 4X
Type of Operator
Keyed
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3SU1050-5BC01-0AA0
Zoro #
G3040313
UPC #
804766067945
Country of Origin
Czechia

Dimensions

Size
22 mm
Overall Height
1.18 in
Overall Width
1.18 in
Panel Cutout Diameter
22 mm
Overall Depth
3.1 in

Details

Action
Momentary/Momentary
Basic Material
Metal
NEMA Rating
1, 12, 2, 3, 3R, 4, 4X
Type of Operator
Keyed
Cam
No Cam Included
Operator Head Material
Metal
Operator Color
Chrome
Position
2
Item
Keyed Selector Switch
Bezel Material
Metal
Key Removal
Left
Bezel Color
Silver
Key Number
SSG10
Switch Operation @ Position D
No Fourth Position
Switch Operation @ Position B
X
Standards
REACH Art. 33, RoHS, WEEE (2012/19/EU)
IP Rating
IP20, IP66, IP67, IP69, IP69K
Switch Operation @ Position C
No Third Position
Switch Operation @ Position A
O
Series
3SU
Number of switch positions
2
Degree of protection (IP), front side
IP67/IP69K
Material front ring
Metal
With front ring
Yes
Construction type lens
Rectangular
Suitable for illumination
No
Colour control element
Silver
Type of control element
Key
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Switch Function @ 3rd Position
No Third Position
Switch Function @ 2nd Position
On
Operator Head Type
Keyed
Switch Function @ 4th Position
No Fourth Position
Hazardous Location Specification
Not Rated
Switch Function @ 1st Position
Off
Operator Illumination
Non-Illuminated
Key Removal Position
Left
Includes Operator Key
Key Included
Number of Positions
2
Operator Head Color
Chrome

Description

Keyed Selector Switch, 22 mm, 2 Position, Momentary/Momentary Action, Keyed Type of Operator, Operator Color Chrome, Key Removal Left, Operator Head Material Metal, Bezel Material Metal, Bezel Color Silver, NEMA Rating 1, 12, 2, 3, 3R, 4, 4X, IP Rating IP20, IP66, IP67, IP69, IP69K, Cam No Cam Included, Standards REACH Art. 33, RoHS, WEEE (2012/19/EU), Key Number SSG10
