Shop SIEMENS

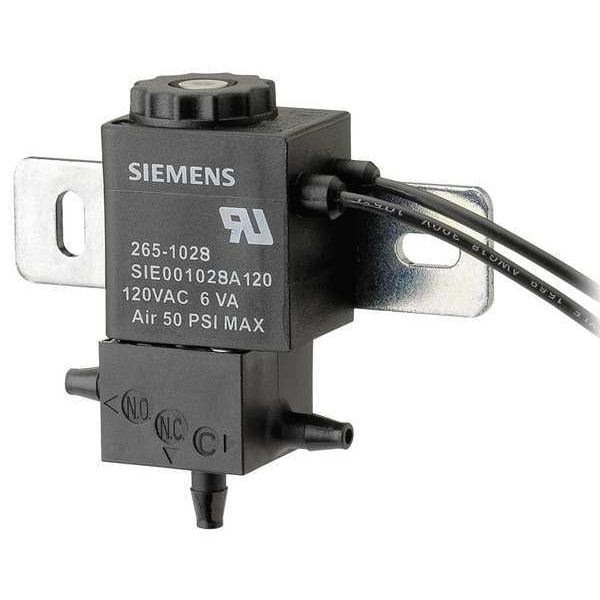

Solenoid Air Valve, 3-Way, 120VAC, 1-20 psi

  • Mfr # 265-1028

  • Zoro # G8527522

product price:  $65.76
/ea

Key Features

Voltage
120V AC
Power Consumption
6 W
Body Material
PBT
Overall Width
3 3/16 in
Height
2 7/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
265-1028
Zoro #
G8527522
UPC #
-
Country of Origin
Italy

Dimensions

Overall Width
3 3/16 in
Height
2 7/8 in
Depth
1 7/8 in
Width
1 3/4 in
Overall Length
3 3/16 in
Normally Closed Port Connection Size
1/4 in
Common Port Connection Size
1/4 in
Normally Open Port Connection Size
1/4 in
Overall Depth
1 13/16 in
Wire Rope Length
3 3/16 in

Details

Item
Solenoid Air Valve
Voltage
120V AC
Power Consumption
6 W
Body Material
PBT
Air Consumption
0.35 cfm
Agency Compliance
UL and cUL Recognized per UL 429
Max. Air Pressure
50 psi
Control Air Pressure
0 to 30 psi
Temp. Control Range
0 Degrees to 122 Degrees F
Air Connections
1/4 in Barb
Normally Open / Normally Closed
Normally Closed
Standards
cUL, UL Listed
Enclosure Type
Open Frame
Frequency
50/60 Hz
Valve Action
Normally Closed, Normally Open
Normally Closed Port Connection Gender
Male
Common Port Connection Type
Barbed Hose
Port Types Included
Common, Normally Closed, Normally Open
Operating Temperature - Minimum
0 Degrees F
Common Port Connection Gender
Male
Coefficient of Volume (Cv)
0.06
Normally Closed Port Connection Type
Barbed Hose
Operating Pressure - Maximum
50 psi
Operating Temperature - Maximum
122 Degrees F
Body Pattern
Three-Way
Normally Open Port Connection Gender
Male
Normally Open Port Connection Type
Barbed Hose
For Media
Air
Installation Orientation
Versatile
Number of Port Connections
3

Description

Solenoid Air Valve, Air Consumption 0.35 cfm, Body Material PBT, Body Pattern Three-Way, Coefficient of Volume (Cv) 0.06, Common Port Connection Gender Male, Common Port Connection Size 1/4 in, Common Port Connection Type Barbed Hose, Electrical Lead Length Not Applicable, Enclosure Type Open Frame, For Media Air, Frequency 50/60 Hz, Installation Orientation Versatile, Mounting Style Not Applicable, Normally Closed Port Connection Gender Male, Normally Closed Port Connection Size 1/4 in
