  11. Stabilized Power Supply, 100/240V AC, 24V DC, 14.4 W, 0.6 A, DIN Rail

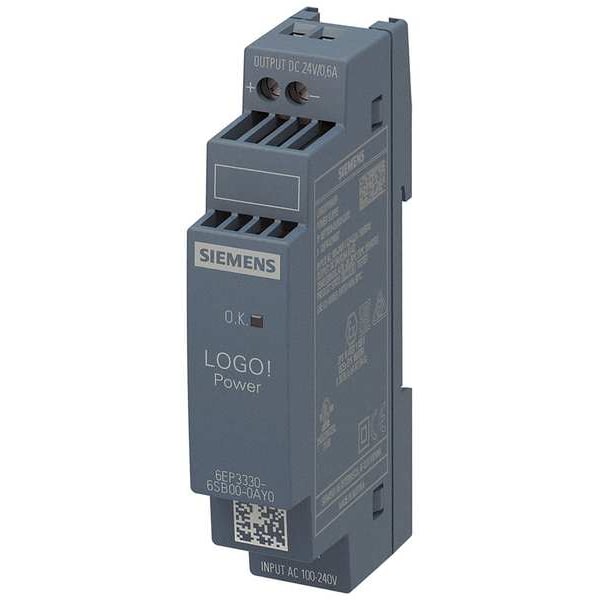

Siemens Stabilized Power Supply, 100/240V AC, 24V DC, 14.4 W, 0.6 A, DIN Rail 6EP33306SB000AY0 - main

CAD Drawings

Download CAD Files

Stabilized Power Supply, 100/240V AC, 24V DC, 14.4 W, 0.6 A, DIN Rail

  • Mfr # 6EP33306SB000AY0

  • Zoro # G8363154

CAD Available
product price: $64.89
/ea

Key Features

CAD Drawing
Input Voltage
100/240V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
14.4 W
Current - Output
0.6 A
Mounting
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6EP33306SB000AY0
Zoro #
G8363154
UPC #
804766486067
Country of Origin
Austria

Dimensions

Overall Height
18 mm
Overall Width
90 mm
Overall Depth
53 mm
Width
18 mm
Depth
53 mm
Height
90 mm

Details

CAD Available
Yes
Item
Stabilized Power Supply
Input Voltage
100/240V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
14.4 W
Current - Output
0.6 A
Mounting
DIN Rail
Housing Material
Plastic
Phase
Single
Output Amps
0.6A
Operating Temp. Range
-25 to 70°C
Standards
CB-Certificate Yes, CE, CSA, EAC, NEC Class 2, REACH Art. 33, RoHS, UL, WEEE (2012/19/EU)
Regulated / Unregulated
Regulated
Hz
47 to 63 Hz
Protection
Short-Circuit Proof
Power Rating
14.4W
Connection
Screw
Series
Logo!Power
Status Indicator
Green LED OK Signal
Phase - Electrical
Single
Features
Output Overvoltage Protection, Primary/Secondary Isolation, Product Feature of the Enclosure Housing for Side-by-Side Mounting, Property of the Output Short-Circuit Proof, Screw-Type Terminals, Wide-Range Input
IP Rating
IP20
Output Voltage
24V DC
Current - Inrush
20 A
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-13 Degrees F
Wire Connection Type
Screw Terminals
Special Features
Short Circuit Protection

Description

Stabilized Power Supply, Input Voltage 100 to 240V AC, Output Voltage 24V DC, Power Rating 14.4W, Output Amps 0.6, Mounting DIN Rail, Height 90 mm, Width 18 mm, Depth 53 mm, Series Logo!Power, Hz 47 to 63 Hz, Phase - Electrical Single, IP Rating IP20, Status Indicator Green LED OK Signal
