  11. Stabilized Power Supply, 100/240V AC, 24V DC, 31.2 W, 1.3 A, DIN Rail

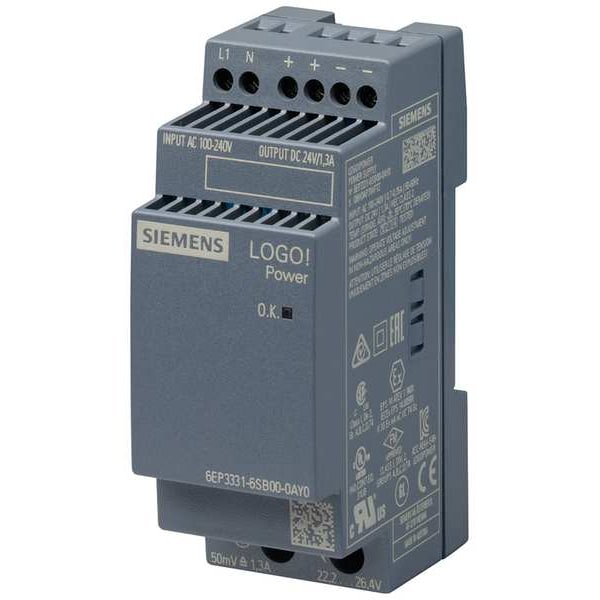

Siemens Stabilized Power Supply, 100/240V AC, 24V DC, 31.2 W, 1.3 A, DIN Rail 6EP33316SB000AY0 - main

Stabilized Power Supply, 100/240V AC, 24V DC, 31.2 W, 1.3 A, DIN Rail

  • Mfr # 6EP33316SB000AY0

  • Zoro # G8363084

product price: $89.59
/ea
Free Shipping & Returns

Key Features

Input Voltage
100/240V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
31.2 W
Current - Output
1.3 A
Mounting
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6EP33316SB000AY0
Zoro #
G8363084
UPC #
804766468964
Country of Origin
Austria

Dimensions

Overall Height
36 mm
Overall Width
90 mm
Overall Depth
53 mm
Height
90 mm
Width
36 mm
Depth
53 mm

Details

Item
Stabilized Power Supply
Input Voltage
100/240V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
31.2 W
Current - Output
1.3 A
Mounting
DIN Rail
Housing Material
Plastic
Phase
Single
Power Rating
31.2W
Operating Temp. Range
-25 to 70°C
Hz
47 to 63 Hz
Phase - Electrical
Single
Output Voltage
24V DC
Output Amps
1.3A
Regulated / Unregulated
Regulated
Series
Logo!Power
Standards
BIS, CB-Certificate Yes, CE, CSA, EAC, NEC Class 2, REACH Art. 33, RoHS, UL, WEEE (2012/19/EU)
Protection
Short-Circuit Proof
Features
Output Overvoltage Protection, Parallel Switching for Enhanced Performance, Primary/Secondary Isolation, Product Feature of the Enclosure Housing for Side-by-Side Mounting, Product Function Output Voltage Adjustable, Property of the Output Short-Circuit Proof, Screw-Type Terminals, Wide-Range Input
Status Indicator
Green LED OK Signal
Connection
Screw
IP Rating
IP20
Operating Temperature - Minimum
-13 Degrees F
Wire Connection Type
Screw Terminals
Special Features
Short Circuit Protection
Current - Inrush
25 A
Operating Temperature - Maximum
158 Degrees F

Description

Stabilized Power Supply, Input Voltage 100 to 240V AC, Output Voltage 24V DC, Power Rating 31.2W, Output Amps 1.3, Mounting DIN Rail, Height 90 mm, Width 36 mm, Depth 53 mm, Series Logo!Power, Hz 47 to 63 Hz, Phase - Electrical Single, IP Rating IP20, Status Indicator Green LED OK Signal
