  11. Stabilized Power Supply, 100/240V AC, 24V DC, 480 W, 20 A, DIN Rail

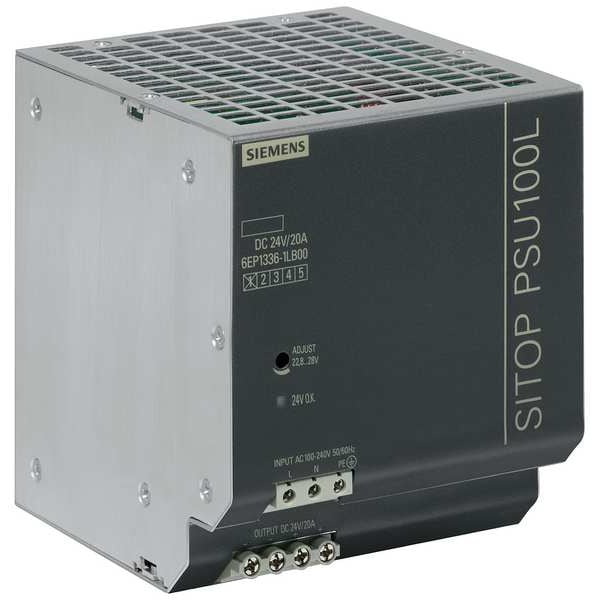

Siemens Stabilized Power Supply, 100/240V AC, 24V DC, 480 W, 20 A, DIN Rail 6EP13361LB00 - main

Stabilized Power Supply, 100/240V AC, 24V DC, 480 W, 20 A, DIN Rail

  • Mfr # 6EP13361LB00

  • Zoro # G8363364

product price: $471.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
100/240V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
480 W
Current - Output
20 A
Mounting
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6EP13361LB00
Zoro #
G8363364
UPC #
804766459504
Country of Origin
China

Dimensions

Overall Height
110 mm
Overall Width
125 mm
Overall Depth
125 mm
Width
110 mm
Height
125 mm
Depth
125 mm

Details

Item
Stabilized Power Supply
Input Voltage
100/240V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
480 W
Current - Output
20 A
Mounting
DIN Rail
Housing Material
Metal
Phase
Single
Operating Temp. Range
-25 to 70°C
Connection
Screw
Regulated / Unregulated
Regulated
Output Amps
20A
Standards
BIS, CB-Certificate Yes, CE, CSA, EAC, RCM, REACH Art. 33, RoHS, UL, WEEE (2012/19/EU)
Protection
Short-Circuit Proof
IP Rating
IP20
Status Indicator
Green LED OK Signal
Series
SITOP PSU100L
Power Rating
480W
Output Voltage
24V DC
Phase - Electrical
Single
Hz
47 to 63 Hz
Features
Parallel Switching for Enhanced Performance, Primary/Secondary Isolation, Product Feature of the Enclosure Housing for Side-by-Side Mounting, Product Function Output Voltage Adjustable, Property of the Output Short-Circuit proof, Screw-Type Terminals, Wide-Range Input
Operating Temperature - Minimum
-13 Degrees F
Wire Connection Type
Screw Terminals
Current - Inrush
45 A
Special Features
Overvoltage Protection, Short Circuit Protection
Operating Temperature - Maximum
158 Degrees F

Description

Stabilized Power Supply, Input Voltage 100 to 240V AC, Output Voltage 24V DC, Power Rating 480W, Output Amps 20, Mounting DIN Rail, Height 125 mm, Width 110 mm, Depth 125 mm, Series SITOP PSU100L, Hz 47 to 63 Hz, Phase - Electrical Single, IP Rating IP20, Status Indicator Green LED OK Signal
