Shop SIEMENS

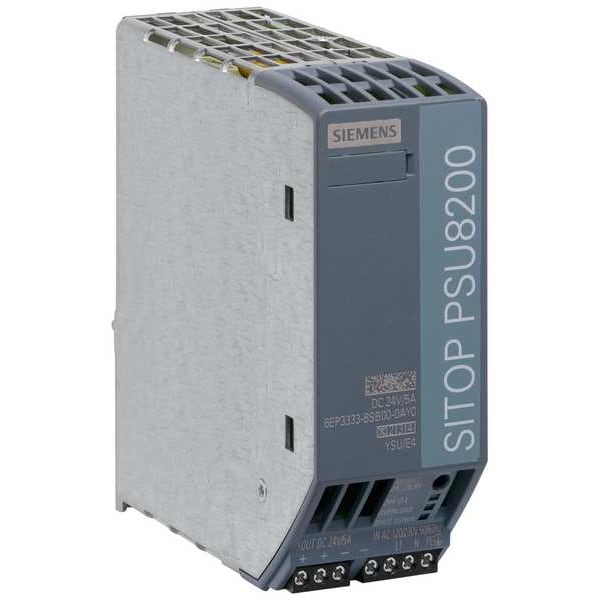

Stabilized Power Supply, 120/230V AC, 24V DC, 120 W, 5 A, DIN Rail

  • Mfr # 6EP33338SB000AY0

  • Zoro # G8361176

product price:
$
350.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
120/230V AC
Output Voltage - Nominal
24 V DC
Output Power - Rated
120 W
Current - Output
5 A
Mounting
DIN Rail
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6EP33338SB000AY0
Zoro #
G8361176
UPC #
887621837266
Country of Origin
Romania

Dimensions

Overall Height
4.92 in
Overall Width
1.77 in
Overall Depth
4.92 in
Width
45 mm
Height
125 mm
Depth
125 mm

Details

Item
Stabilized Power Supply
Input Voltage
120/230V AC
Output Voltage - Nominal
24 V DC
Output Power - Rated
120 W
Current - Output
5 A
Mounting
DIN Rail
Housing Material
Metal
Phase
Single
Features
Parallel Switching for Enhanced Performance, Primary/Secondary Isolation, Product Feature of the Enclosure Housing for Side-by-Side Mounting, Product function Output Voltage Adjustable, Property of the Output Short-Circuit Proof, Screw-Type Terminals
Connection
Screw
IP Rating
IP20
Regulated / Unregulated
Regulated
Protection
Short-Circuit Proof
Output Amps
5A
Phase - Electrical
Single
Status Indicator
LED
Series
SITOP PSU8200
Operating Temp. Range
-25 to 70°C
Hz
47 to 63 Hz
Output Voltage
24V DC
Power Rating
120W
Standards
CB-Certificate Yes, CE, CSA, EAC, REACH Art. 33, Regulatory Compliance Mark (RCM), RoHS, UL, WEEE (2012/19/EU)
Wire Connection Type
Screw Terminals
Special Features
Short Circuit Protection
Operating Temperature - Maximum
158 Degrees F
Current - Inrush
10 A
Operating Temperature - Minimum
-13 Degrees F
Input Frequency - Maximuim
63 Hz
Power Supply Style
Switching
Input Frequency - Minimum
47 Hz
Output Voltage - Maximum
28.8 V DC
Output Voltage - Minimum
24 V DC

Description

Stabilized Power Supply, Input Voltage 120 to 230V AC, Output Voltage 24V DC, Power Rating 120W, Output Amps 5, Mounting DIN Rail, Height 125 mm, Width 45 mm, Depth 125 mm, Series SITOP PSU8200, Hz 47 to 63 Hz, Phase - Electrical Single, IP Rating IP20, Status Indicator LED
