  6. Surge Protection Device, Three Phase, 120/208V AC Wye, 3 Poles, 4 Wires + Ground, 200kA

This item is Discontinued.

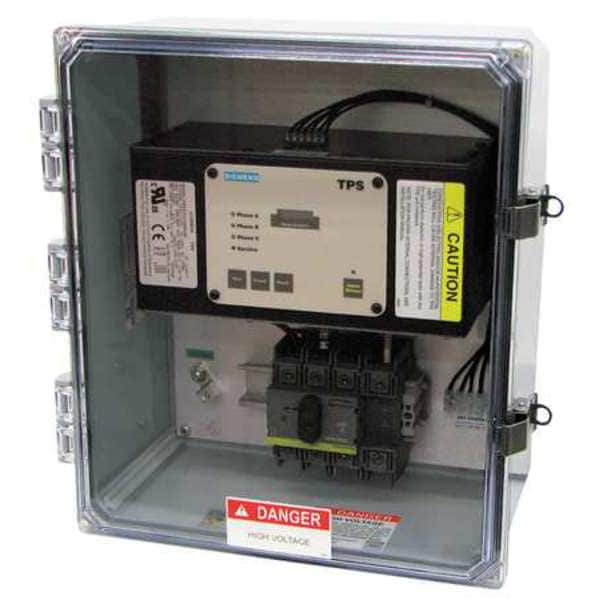

Siemens Surge Protection Device, Three Phase, 120/208V AC Wye, 3 Poles, 4 Wires + Ground, 200kA TPS3C1220VX02

Surge Protection Device, Three Phase, 120/208V AC Wye, 3 Poles, 4 Wires + Ground, 200kA (Discontinued)

  • Mfr # TPS3C1220VX02
  • Zoro # G3696147
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TPS3C1220VX02
Zoro #
G3696147
UPC #
040892254891
Country of Origin
United States

Dimensions

Length
12 in
Depth
7 in
Width
12 in
Length (Straight Wireway)
12.0 in

Details

Item
Surge Protection Device
Mounting Style
Surface
Phase
Three
Voltage
120/208V AC Wye
Number of Poles
3
Voltage Protection Rating
1200V (L-L), 700V (L-G, L-N, N-G)
Number of Wires
4 Wires + Ground
Modes of Protection
L-G, L-L, L-N, N-G
Max. Surge Current per Mode
100kA (L-G, L-N), N-G
Max. Surge Current Per Phase
200kA
Max. Surge Current per Phase
200 kA
Nominal Discharge Current
20 kA
Short Circuit Current Rating
200kA
Modular
Yes
Filtering
Yes
Max. Continuing Operating Voltage
150 V AC
Enclosure NEMA Rating
4X
IP Rating
10, 14, 52, 56
Enclosure Material
Polycarbonate
Wire Gauge
8 to 1/0 AWG
Includes
Dry Contacts, EMI/RFI Filters
Standards
ANSI/IEEE , UL/cUL 1449 Listed, UL 1283, Type 2
Filtering / Nonfiltering
Filtering
Modular / Nonmodular
Modular
Lightning Impulse Current
20 kA
Noise Attenuation
-50db @ 10kHz to 100MHz
Min. Operating Temp.
-15 Degrees F
System Connection
Parallel
Color
Gray
Max. Operating Temp.
140 Degrees F
UL SPD Type
Type 2
Basic Material
Nonmetallic
Status Indicator
Audible Alarm, LED Light
Includes Surge Counter
Yes

Description

Surge Protection Device, Nonmetallic, Gray, Depth 7 in, Enclosure Material Polycarbonate, Enclosure NEMA Rating 4X
