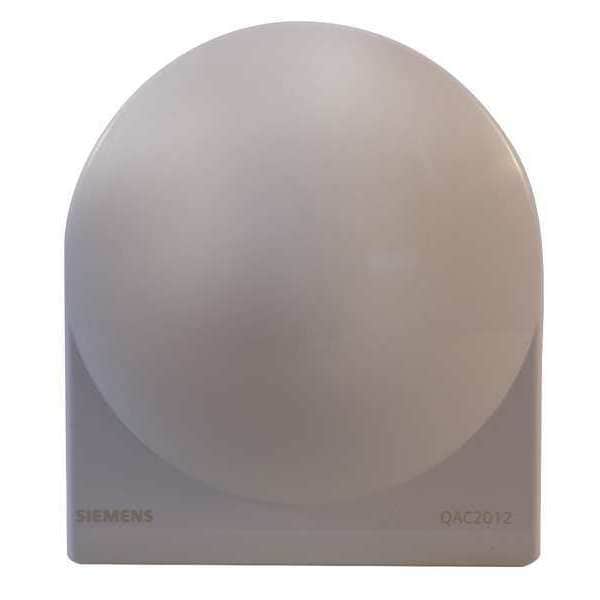

Temp. Sensor, Outdoor, 1k ohm Pt 385 RTD

product price: $19.94
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Outdoor
  • Voltage 24V AC
  • Includes Conduit Adapter
  • Connection Terminal Block
  • For Use With HVAC Control Systems
See all product information

Product Information

Dimensions

Dimensions 3-3/4 in x 3-1/4 in x 2-1/4 in
Overall Depth 2 in
Overall Height 3 5/8 in
Overall Width 3 1/8 in
Manufacturers Warranty Length 5 yr

Details

Type Outdoor
Voltage 24V AC
Includes Conduit Adapter
Connection Terminal Block
For Use With HVAC Control Systems
Outputs 1k ohm Pt 385 RTD
Dehumidification Capability No
Features Responsive to Temperature Changes, Accurate and Reliable, Easy to Install Requires No Special Tools
Item Temperature Sensor
Building Type Commercial
Occupancy Control Sensor No
Compatible With HVAC Control Systems
Maximum Operating Temperature 158 Degrees F
Housing Material Plastic
Standards Class 2, UL Listed
Application Air Conditioning, Heating, Ventilation
Sensor Accuracy +/-0.54 Degrees F
Series QAC...FW-T1G
Temperature Accuracy +/-0.54 Degrees F
Sensing Element Type Platinum
Display Type None
Housing Type Conduit Box
Sensor Output Type 1K ohm Pt RTD (385a)
Product Type Outdoor Temperature Sensor
Minimum Operating Temperature -40 Degrees F
Minimum Sensing Temperature -40 Degrees F
For Use With Building Automation Systems Building Automation System Compatible
IP Rating IP54
Electrical Connection Type Hardwired
Maximum Sensing Temperature 158 Degrees F
Measurement Type Single
Housing Color White
Loop Resistance 1k ohm
Compatible Building Automation Protocols BACnet IP, BACnet MS/TP, LonWorks, LoRaWAN, Modbus, MP-Bus

Description

Temperature Sensor, Display Type None, Sensing Element Type Platinum, Output Not Applicable, Housing Type Conduit Box, Housing Material Plastic, Housing Color White, Probe Length Not Applicable, Temperature Accuracy +/-0.54 Degrees F, Electrical Connection Type Hardwired, NEMA Rating Not Applicable, Product Type Outdoor Temperature Sensor, Maximum Sensing Temperature 158 Degrees F, Minimum Sensing Temperature -40 Degrees F
