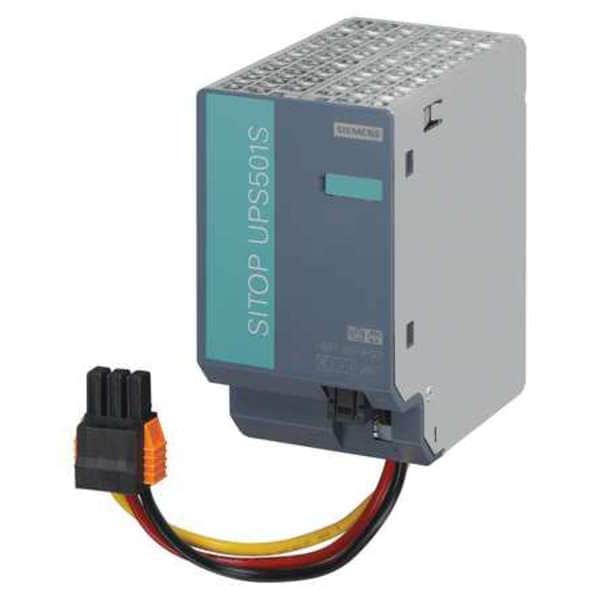

Siemens UPS System, 208VA, Standby, Out: 24V DC In: 24V DC 6EP1935-5PG01 - main

UPS System, 208VA, Standby, Out: 24V DC In: 24V DC

  • Mfr # 6EP1935-5PG01

  • Zoro # G4202012

product price: $879.99
/ea
Free Shipping & Returns

Key Features

VA Rating - UPS Systems
208.0 VA
UPS Type
Standby
Power Rating
208VA
Mounting
DIN Rail
Wattage
360 W
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6EP1935-5PG01
Zoro #
G4202012
UPC #
662643351354
Country of Origin
Austria

Dimensions

Depth
5 in
Width
5 in
Height
5 in
Cord Length
No Cord
Overall Depth
4.92 in
Overall Height
3.86 in
Overall Width
2.76 in

Details

VA Rating - UPS Systems
208.0 VA
Item
UPS System
UPS Type
Standby
Power Rating
208VA
Mounting
DIN Rail
Wattage
360 W
Input Voltage
24V DC
Output Voltage
24V DC
Backup Time (Half/Full Load)
-/16.8 min
Outlet Type
Hardwired
Medical Grade
No
Number of Outlets
0
Ports
USB
NEMA Receptacle Configuration
No Configuration
Transfer Time
0 msec
Display Type
LED
Automatic Volts Regulation
No
Fax/Modem Line Protection
No
Standards
cCSAus, CE, CSA C22.2 No. 107.1, cULus-Listed, EAC, UL, UL 508
Special Features
Maintenance-Free DC UPS with High Capacity Double-Layer Capacitors, Mounting Location Does Not Require Ventilation, Quick Restoration of Buffer Readiness
Includes
For 24V DC Back-up in Combination with a 24V DC Switch Mode Power Supply
Input Current
17.5 A / 15.2 A
Input Connection
Screw Terminal
Voltage
24 VDC
Housing Material
Metal
Supply voltage type
DC
Output voltage for SPC is regulated
Yes
Protection type IP
IP20
description of product type
Extension module
Operating Temperature - Minimum
32 Degrees F
Transfer Time - Maximum
0 msec
Number of Outlets - Surge Only
0
Power Rating - Apparent
208 VA
Automatic Voltage Regulation
No Automatic Voltage Regulation
Power Rating - Real
360 W
Run Time - Full Load
16.8 min
Receptacle Configuration
Hardwired
Data Line Protection
No Data Line Surge Protection
Output Ports Included
USB
Operating Temperature - Maximum
140 Degrees F
Number of Outlets - UPS
0

Description

UPS System, Standby, Power Rating 208 VA, Wattage 360 W, Input Voltage 24V DC, Output Voltage 24V DC, Backup Time (Half/Full Load) --/16.8 min, Mounting DIN Rail, Outlet Type Hardwired, Number of Outlets 0, Medical Grade Not Medical Grade Approved, NEMA Receptacle Configuration No Configuration, Automatic Volts Regulation No, Fax/Modem Line Protection No, Transfer Time 0 msec, Width 3 in, Depth 5 in, Height 5 in, Cord Length No Cord, Display Type LED, N/A Hz, Input Current 17.5 A / 15.2 A
