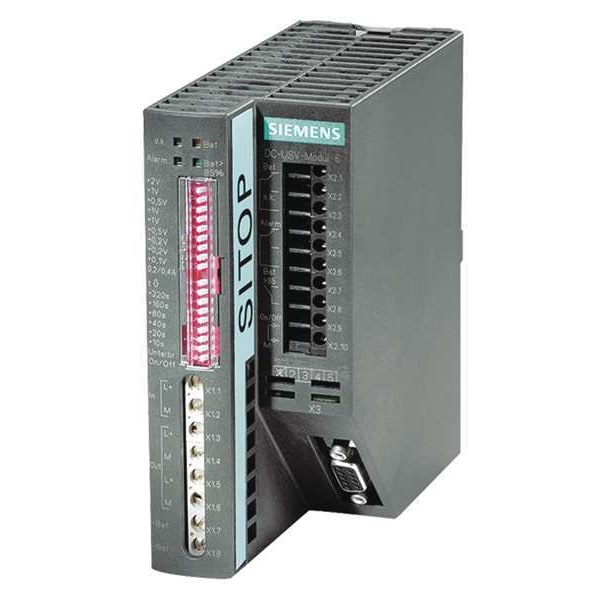

Siemens UPS System, 6VA, Standby, Out: 24V DC In: 24V DC 6EP1931-2DC42 - main

UPS System, 6VA, Standby, Out: 24V DC In: 24V DC

  • Mfr # 6EP1931-2DC42

  • Zoro # G4173951

product price: $573.45
/ea
Free Shipping & Returns

Key Features

VA Rating - UPS Systems
6.0 VA
UPS Type
Standby
Power Rating
6VA
Mounting
DIN Rail
Wattage
144 W
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6EP1931-2DC42
Zoro #
G4173951
UPC #
662643298437
Country of Origin
Austria

Dimensions

Width
5 in
Height
5 in
Cord Length
No Cord
Depth
5 in
Overall Depth
4.92 in
Overall Width
5.28 in
Overall Height
2.36 in

Details

VA Rating - UPS Systems
6.0 VA
Item
UPS System
UPS Type
Standby
Power Rating
6VA
Mounting
DIN Rail
Wattage
144 W
Input Voltage
24V DC
Output Voltage
24V DC
Backup Time (Half/Full Load)
Up to 11 hr
Outlet Type
Hardwired
Medical Grade
No
Number of Outlets
0
Standards
cCSAus, CE, CSA C22.2 No. 107.1, cULus-Listed, EAC, UL, UL 508
Automatic Volts Regulation
No
Fax/Modem Line Protection
No
Ports
USB
Input Current
6.85 A / 6.25 A
Special Features
USB Monitoring, Maintenance-Free Battery Modules from 1.2 to 12 A/hr, High Reliability and Availability Due to Monitoring of The Operational Readiness, Battery Feeder, Aging and Charging Status, Extended Life of Loads and Batteries Due to Integrated Battery Management, Settings by Means of DIP Switches: Battery Connection Threshold, End-of-Charge Voltage, Charging Current, Bridging Time, Uninterrupted Transition from Readiness to Buffering Mode
Display Type
LED
Includes
For 24V DC Back-up in Combination with a 24V DC Switch Mode Power Supply
NEMA Receptacle Configuration
No Configuration
Transfer Time
0 msec
Input Connection
Screw Terminal
Voltage
24 V DC
Housing Material
Metal
min. rated supply voltage with DC
22 volt
Supply voltage type
DC
Output voltage for SPC is regulated
Yes
Design of electrical connection
USB
description of product type
DC UPS 24 V/6 A
max. output voltage
28.5 volt
max. rated supply voltage with DC
29 volt
Protection type IP
IP20
min. output voltage
19 volt
Output current
6 ampere
Automatic Voltage Regulation
No Automatic Voltage Regulation
Number of Outlets - Surge Only
0
Data Line Protection
No Data Line Surge Protection
Input Current - Maximum
6 A
Number of Outlets - UPS
0
Receptacle Configuration
Hardwired
Run Time - Full Load
11 hr
Transfer Time - Maximum
0 msec
Operating Temperature - Maximum
140 Degrees F
Power Rating - Real
144 W
Operating Temperature - Minimum
-13 Degrees F
Output Ports Included
USB

Description

UPS System, Standby, Power Rating 6 VA, Wattage 144 W, Input Voltage 24V DC, Output Voltage 24V DC, Backup Time (Half/Full Load) Up to 11 hr, Mounting DIN Rail, Outlet Type Hardwired, Number of Outlets 0, Medical Grade Not Medical Grade Approved, NEMA Receptacle Configuration No Configuration, Automatic Volts Regulation No, Fax/Modem Line Protection No, Transfer Time 0 msec, Width 2 in, Depth 5 in, Height 5 in, Cord Length No Cord, Display Type LED, N/A Hz, Input Current 6.85 A / 6.25 A

Restrictions

Hazardous material
