  11. UPS System, 800kVA, Standby, Out: 24V DC In: 24V DC

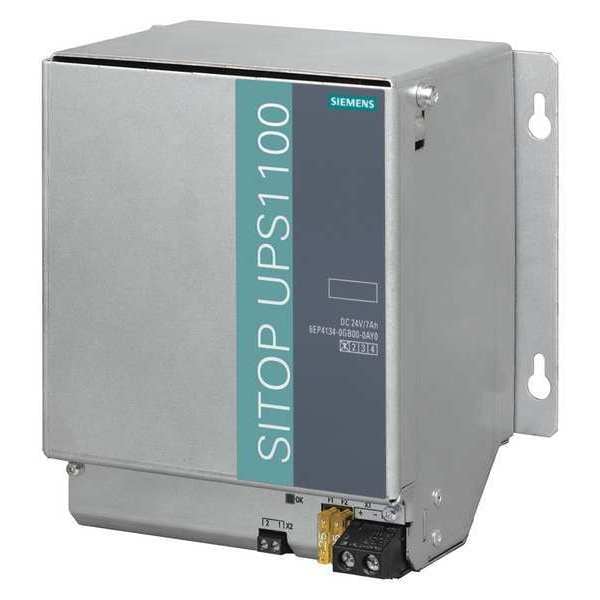

Siemens UPS System, 800kVA, Standby, Out: 24V DC In: 24V DC 6EP41340GB000AY0 - main

UPS System, 800kVA, Standby, Out: 24V DC In: 24V DC

  • Mfr # 6EP41340GB000AY0

  • Zoro # G7538011

product price: $398.99
/ea
Free Shipping & Returns

Key Features

UPS Type
Standby
Power Rating
800kVA
Mounting
DIN Rail
Wattage
42 W
Input Voltage
24V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6EP41340GB000AY0
Zoro #
G7538011
UPC #
-
Country of Origin
Austria

Dimensions

Height
5 in
Depth
8 in
Width
8 in
Cord Length
No Cord
Overall Height
5.28 in
Overall Width
7.31 in
Overall Depth
4.33 in

Details

Item
UPS System
UPS Type
Standby
Power Rating
800kVA
Mounting
DIN Rail
Wattage
42 W
Input Voltage
24V DC
Output Voltage
24V DC
Backup Time (Half/Full Load)
34 min/9 min
Outlet Type
Hardwired
Medical Grade
No
Number of Outlets
0
Input Current
1.8 A
Fax/Modem Line Protection
No
Standards
cCSAus, CE, CSA C22.2 No. 107.1, cULus-Listed, EAC, UL, UL 508
Hz
50/60 Hz
Transfer Time
0 msec
Automatic Volts Regulation
No
Display Type
LED
Includes
For 24V DC Back-up in Combination with a 24V DC Switch Mode Power Supply
Special Features
Aging, and Charge Level, Automatic Detection of Battery Modules, Automatic Selection of Optimal Temperature-Controlled Charging, Battery Connection, Monitoring of Operational Readiness
VA Rating - UPS Systems
800.0 VA
NEMA Receptacle Configuration
No Configuration
Input Connection
Hardwired
Housing Material
Metal
closed (sealed)
Yes
Capacity
7000 milliampere hour
description of product type
Battery module 7 Ah
max. ambient temperature
50 degree_Celsius
battery pack present
Yes
min. ambient temperature
-15 degree_Celsius
Includes Battery
Battery Included
Power Rating - Real
42 W
Frequency
50/60 Hz
Data Line Protection
No Data Line Surge Protection
Operating Temperature - Maximum
122 Degrees F
Number of Outlets - Surge Only
0
Receptacle Configuration
Hardwired
Operating Temperature - Minimum
5 Degrees F
Automatic Voltage Regulation
No Automatic Voltage Regulation

Description

UPS System,DIN Rail Mounting,800kVA VA Rating,42W Watts,24VDC Input Voltage,50/60 Hz,Input Current 1.75 A,Output Voltage 24 VDC,N/A Phase,Backup Time (Half/Full Load) 34 min./9 min.,Number of Outlets 0,Automatic Volts Regulation No,Fax/Modem Line Protection No,Transfer Time 0 msec,Height 5.2 In.,Depth 8.2 In.,Width 9.2 In.,Input Connection Hard Wired
