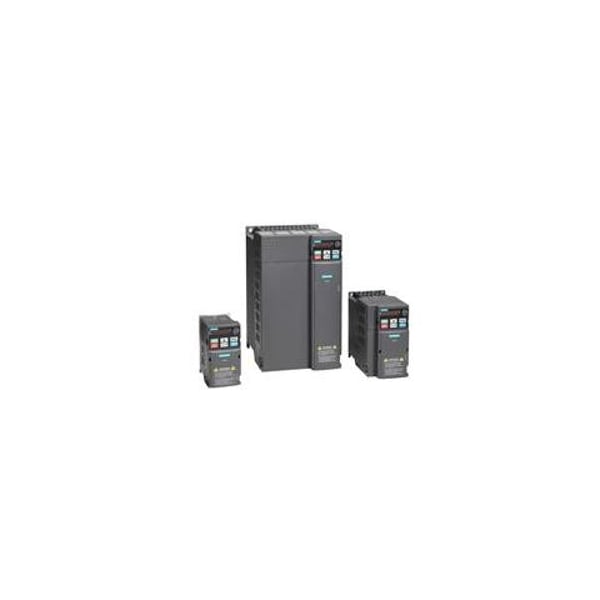

Siemens Variable Frequency Drive, 1/2 hp, 230V RT0005-23N - main

Variable Frequency Drive, 1/2 hp, 230V

  • Mfr # RT0005-23N

  • Zoro # G010043575

product price: $394.99
/ea
Free Shipping & Returns

Key Features

Dynamic Braking
Yes
Starting Torque
100% to 150%
Input Phase AC
Three
Output Frequency Range
0 to 599 Hz
Protection
Overcurrent, Overtemperature, Overvoltage, Phase Loss, Stall Prevention
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RT0005-23N
Zoro #
G010043575
UPC #
-
Country of Origin
China

Dimensions

Overall Depth
4 3/8 in
Overall Width
2 5/8 in
Overall Height
5 in

Details

Item
Variable Frequency Drive
Dynamic Braking
Yes
Starting Torque
100% to 150%
Input Phase AC
Three
Output Frequency Range
0 to 599 Hz
Protection
Overcurrent, Overtemperature, Overvoltage, Phase Loss, Stall Prevention
Control Type
Mobile App
Input Voltage
230V
Control Method
Digital
Input Frequency
50/60 Hz
Standards
C-Tick, CE, REACH, RoHS, TUV (SIL 2), UL
Number of Inputs
(2) Analog; (7) Digital
Input Type
Analog, Digital
Style
Compact
Application
Rooftop Fans
Input Voltage Range
200 V AC to 240 V AC
Ethernet Port Included
Yes
Enclosure Rating
IP21
Output Type
Analog, Relay
Series
RTU
Maximum Output Current
2.8 A
Maximum Output Power
1/2 hp
Number of Outputs
(1) Analog; (2) Relay

Description

Variable Frequency Drive, Input Voltage 230V, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 1/2 hp, Maximum Output Current 2.8 A, Output Frequency Range 0 to 599 Hz, Enclosure Rating IP21
