Multifunction Process Calibrator for Temp, Pressure, Loops, Pulse and Frequency

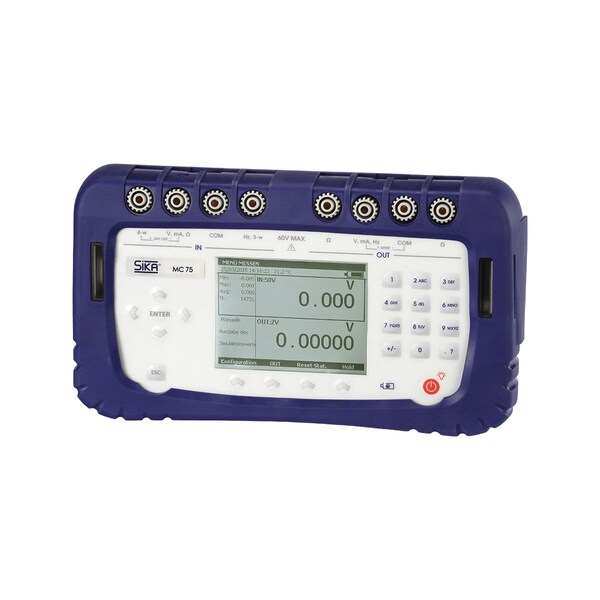

SIKA MC 75.2 Multifunction Process Calibrator - High-Accuracy Electrical, Temperature & Pressure Simulation. The SIKA MC 75.2 is a rugged, high-precision handheld multifunction process calibrator designed for technicians whneed reliable performance in the field or lab. This industrial-grade calibrator measures and simulates RTDs, thermocouples, mA, voltage, resistance, frequency, pulses, and pressure (with external modules)-making it a single tool that replaces multiple standalone devices. Built with an ABS housing and protective rubber sheath, the MC 75.2 offers a dual LCD display, intuitive menu navigation, and advanced features such as data logging (10,000 points), transmitter simulation, ramps/steps, synthesizer mode, and scalable signal output. Ideal for commissioning, troubleshooting, and calibration of transmitters, sensors, control loops, HVAC systems, process instrumentation, and automation equipment. Key Features: High-accuracy multifunction calibrator for maintenance, testing, and calibration, Measures & generates RTD, thermocouple, mV, V, mA, ?, frequency, and pulse signals. Compatible with external pressure modules (up t1,000 bar), Built-in 24 V loop power supply with HART resistor, Dual-channel display for simultaneous measure/simulate. Advanced modes: ramps, steps, synthesizer, valve test, % span. Data logger with 10,000 stored readings + graph/table view, Rechargeable Ni-MH battery with 5-10 hours runtime, Durable IP54 housing with protective rubber cover, USB interface for configuration & data handling. Ideal For: Instrumentation technicians, Oil & gas, chemical, and process industries, HVAC and BAS commissioning, Lab and field calibration, Maintenance, QA/QC, and MRteams. Technical Highlights: RTD measurement & simulation: Pt100, Pt1000, Pt500, Ni100, Cu50, and others. Thermocouple measurement & simulation: J, K, T, R, S, B, N, E, U, L, Voltage: 0-50 V measurement / 0-20 V generation, Current: 0(4)-50 mA measurement / 0(4)-24 mA output, Resistance: 0-4000ohm measurement & generation, Frequency: 0.01 Hz-10 kHz, Data logging: 10,000 points, Pressure: via EPM modules (-1...1000 bar). What's Included: MC 75.2 Process Calibrator, Protective cover, Test leads and safety plug connectors, AC charger / power supply, Carrying strap, User manual
