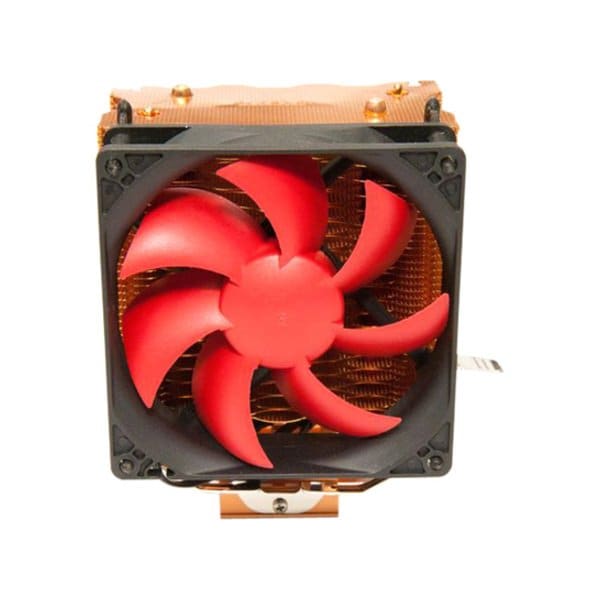

EFZ-92HA3 92 mm. 2X Heat Pipe Heat Sink
Mfr # EFZ-92HA3
Zoro # G404024661
Key Features
Specifications
Product Information
- MFR #
- EFZ-92HA3
- Zoro #
- G404024661
- UPC #
- 854224001646
- Country of Origin
- China
Dimensions
- Heatsink Depth
- 3.23 in
- Heatsink Width
- 3.74 in
- Heatsink Height
- 4.84 in
- Fan Diameter
- 92 mm
Details
- Item
- Cooling Fan
- For Use With
- AMD Phenom Processor; Intel Processors: i3, i5, i7
- Voltage
- 12V DC
- Heat Pipe Material
- Copper
- Air Flow
- 48 cfm
- Compatible Intel Socket
- B LGA-1366, H2 LGA-1155, H LGA-1156, T LGA-775
- Heatsink Material
- Aluminum
- Fan Speed
- 2000 RPM
- Compatible AMD Socket
- PGA-754, 940, AM2+ PGA-940, FM1, AM2 PGA-940, AM3 PGA-941, 939
- Bearing Type
- Fluid Dynamic Bearing
- Number of Heat Pipes
- 2
Description
A step up in size from the efz-80ha3 is the new efz-92ha3. As long as spacing permits, this is the ideal cooler for those with smaller cases. Performs better than your stock cooler while operating at a lower noise, it's a perfect complement to your new system and ideal for those with moderate processing needs. The efz-92ha3 utilizes two 6 mm. Heat pipes that directly contact the CPU and are intertwined to provide four effective heat pipes worth of thermal dissipation. A universal mounting bracket supports the widest range of current amd and intel sockets, including the latest multi core phenom and i3/i5/i7 processors. We've included an effizio 92 mm. Fan with 3rd generation fluid dynamic bearings for years of reliable performance. The installation process is easy with a typical install time of under 10 minutes and does not require the removal of the motherboard.
Specification- Rated DBA - 8-24.
- Materials - copper heat pipes, anodized aluminum fins.
- Weight - 422 g.
- RPM -<2000.
- CFM - 22-48.
- Operating voltage - 5-12V.
- Current draw -<0.15A.
- Power consumption -<1.80W.
- Bearings - 3rd generation fluid dynamic bearings.
- Intel CPU compatibility - lga775, lga1155/1156, lga1366.
- Amd CPU compatibility - socket 754, 939, 940, am2, am2+, am3, fm1.
- Dimensions - 95 x 82 x 123 mm.
