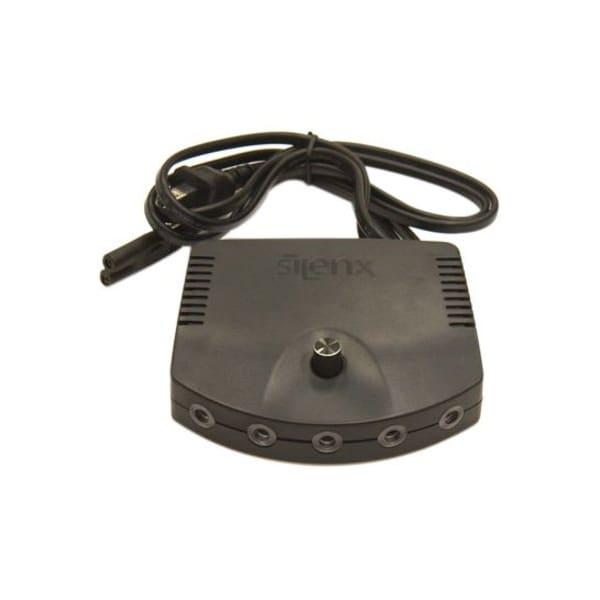

IXA-CCS External 5 Channel Cabinet Cooling System
Mfr # IXA-CCS
Zoro # G404024678
Key Features
Specifications
Product Information
- MFR #
- IXA-CCS
- Zoro #
- G404024678
- UPC #
- 854224001547
- Country of Origin
- China
Dimensions
- Height
- 7 in
- Width
- 7 in
- Depth
- 1.6 in
- Fan Diameter
- 120 mm
Details
- Item
- Cooling Module
- Includes
- (2) High Airflow 120x38mm Fans, Housing Frames, 5 Channel Fan Controller
- For Use With
- Cabinet
- Number of Fans
- 2
- Maximum Airflow
- 778 GPM
- Fan Speed
- 1500 RPM
Description
The first and best complete solution for cooling down cabinets, the ixa-ccs is ideal for those looking to do just that with a professional finish. Used by several electronics cabinet manufacturers and professional av installation companies, the ixa-ccs gives everybody a quick and easy option of installing fans to your cabinets with a simple kit. The base system includes two high airflow, their respective housing frames and a five channel fan controller. Comes with 6 ft. Power cables on the fans and a 5 ft. Power cord on the fan controller and plugs right into your 120 v or 240 v ac power outlet. Fans come with a simple, clean DC barrel connector to make plugging in a snap, no need for messy molex connectors. Can add up to three more fans with the optional ixa-afk additional fan kits designed specifically for use with this system.
Specification- Fan frame dimensions - 178 x 178 x 41 mm.
- Fan controller power cord length - 1500 mm.
- Fan dimensions - 120 x 120 x 38 mm.
- Fan power cable length - 1500 mm.
- Fan rated DBA - 6-24.
- Fan rpm - 600-1500.
- Fan cfm - 36-104.
- Fan operating voltage - 4-12V.
- Included fans in system - 2.
- Channels - 5.
- Fan controller input voltage - 90-265V.
- Fan controller output voltage - 6-12V.
