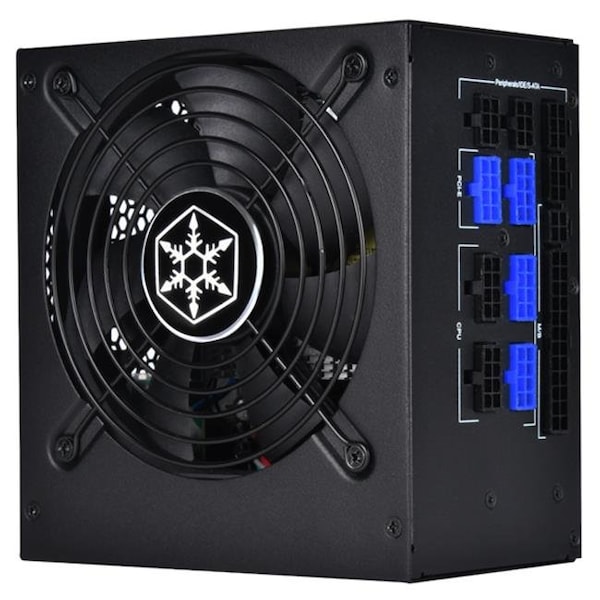

SilverStone Technologies ST85F-GS-V2 850 watt 140 mm Computer Power Supply PSU Fully Modular with 80 Plus Gold & Design Power Supply; Black
Mfr # ST85F-GS-V2
Zoro # G003881450
product price: $201.99
/ea
Free Shipping & Returns
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
ST85F-GS-V2
Zoro #
G003881450
UPC #
844761016401
Country of Origin
China
Description
Features
- Compact design with a depth of 140mm for easy integration (V2.0)
- Compact design with a depth of 150mm for easy integration (V1.0)
- Strict ±2.5% voltage regulation and low ripple & noise (V2.0)
- Strict ±3% voltage regulation and low ripple & noise (V1.0)
- 24/7 continuous power output with 40C operating temperature
- 80 PLUS Gold certification
- 100% modular cables
- Class-leading single +12V rail
- Over Current Protection
- Over power Protection
- Over voltage Protection
- Over temperature Protection
- Short circuit Protection
- Under voltage Protection
- 1 x 24 / 20-Pin motherboard Connector(600 mm)
- 1 x 8 / 4-Pin EPS / ATx 12V Connector(750 mm)
- 1 x 8 / 4-Pin EPS / ATx 12V Connector(550 mm)
- 4 x 8/6-Pin PCIE Connector("550 mm/150 mm" x 2)
- 2 x 8/6-Pin PCIE Connector (550 mm x 2)
- 8 x SATA Connector("600 mm /150 mm / 150 mm / 150 mm" x 2)
- 6 x 4-Pin Peripheral Connector("600 mm / 150 mm / 150 mm" x 2)
- 2 x 4-Pin Floppy Connector(100 mm x 2)
- GPU Support list
- Compatible with ATx12V v2.4
- Color: Black (lead-free paint)
- Maximum DC Output: 850 watt
- Amps: 70.9A
- Power Density: 305 watt per liter
- Combined +3.3V & +5V: 100 watt
- Combined +12V: 540 watt
- Input Voltage: 90V~264V
- Input Frequency Range: 47Hz ~ 63Hz
- PFC: Active PFC.(PF>0.9 at Full Load)
- Efficiency: 87%~90% at 20%~100% loading
- MTBF: 100,000 hours
- Operating Temperature: 0°C ~ 40°C
- Cooling System: Single 120 mm silent Fan
- Form Factor: ATx
- Noise Level: 18 dBA minimum
- Certification: 80 PLUS Titanium
- Low Noise: 120 mm
- Depth: 140
