  9. SilverStone Technologies SX700-PT 700 watt SFx Platinum Power Supply; Black
Silverstone SilverStone Technologies SX700-PT 700 watt SFx Platinum Power Supply; Black SX700-PT - main

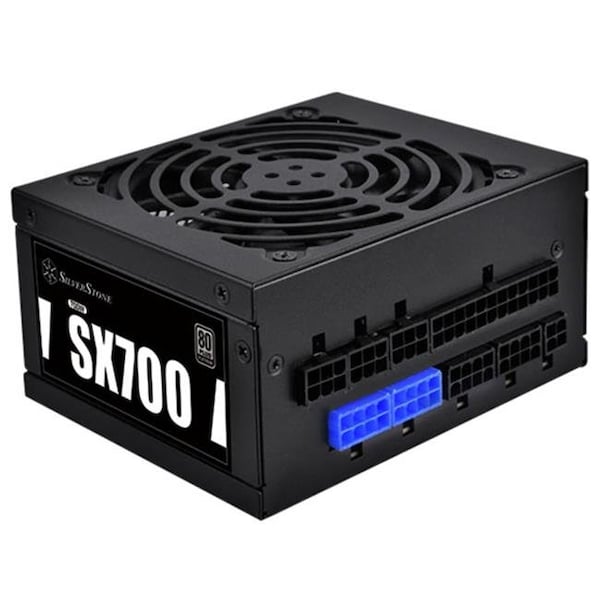

SilverStone Technologies SX700-PT 700 watt SFx Platinum Power Supply; Black

  • Mfr # SX700-PT

  • Zoro # G003881559

product price: $284.99
/ea
Free Shipping & Returns
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SX700-PT
Zoro #
G003881559
UPC #
844761017491
Country of Origin
China

Description

Features
  • Support standard SFx form factor
  • Silent running 92mm FDB fan with 18 dBA minimum
  • All Japanese capacitors
  • High efficiency with 80 PLUS Platinum certification
  • Class-leading single +12V rail
  • Strict ±3% voltage regulation and low ripple & noise
  • 100% modular cables
  • All cable with flexible flat arrays
Protection
  • Over Current Protection
  • Over power Protection
  • Over voltage Protection
  • Short circuit Protection
  • Under voltage Protection
  • Over temperature Protection
Connectors
  • 1 x 24 / 20-Pin motherboard Connector (300 mm)
  • 1 x 8 / 4-Pin EPS / ATx 12V Connector (400 mm)
  • 1 x 8 / 4-Pin EPS / ATx 12V Connector (550 mm)
  • 2 x 8 / 6-Pin PCIE Connector (400 mm / 150 mm)
  • 2 x 8 / 6-Pin PCIE Connector (550 mm / 150 mm)
  • 6 x SATA Connector ("300 mm / 220 mm / 100 mm" x 2)
  • 3 x 4-Pin Peripheral Connector (300 mm / 200 mm / 200 mm)
  • 1 x 4-Pin Floppy Connector (100 mm)
Other
  • GPU Support list
  • Compatible with ATx12V v2.4
Specifications
  • Color: Black(Lead-Free Paint)
  • Maximum DC Output: 700 watt
  • Amps: 58.4A
  • Power Density: 882 watt per liter
  • Combined +3.3V & +5V: 110 watt
  • Combined +12V: 700 watt
  • Input Voltage: 90V ~ 264V
  • Input Frequency Range: 47Hz ~ 63Hz
  • PFC: Active PFC(PF>0.9 at full load)
  • Efficiency: 87% ~ 90% at 20% ~ 100% loading
  • MTBF: 100,000 hours
  • Operating Temperature: 0°C ~ 40°C
  • Cooling System: Single 92 mm FDB Fan
  • Form Factor: SFx
  • Noise Level: 18 dBA minimum
  • Certification: 80 PLUS Platinum
  • Dimension: 4.92" x 2.5" x 3.94"

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
