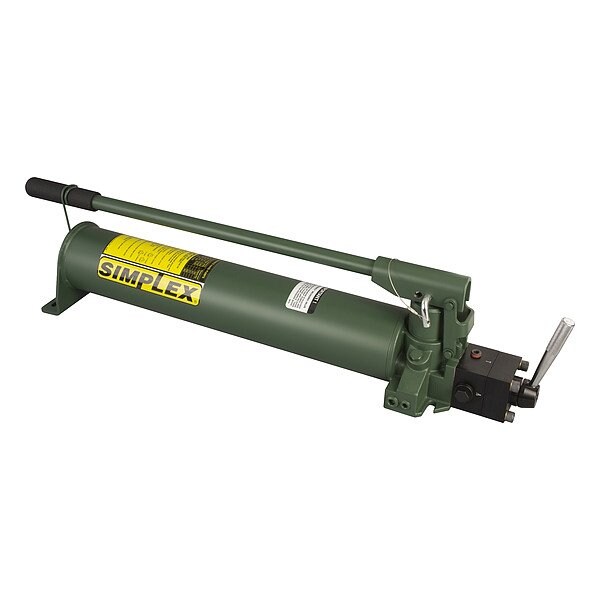

Hand Pump - Heavy Duty Steel
Mfr # P143D
Zoro # G812648268
product price: $1,933.99
/ea
Free Shipping & Returns
Key Features
Number of Stages
2
Displacement per Stroke 1st Stage
2.81 cu in
Displacement per Stroke 2nd Stage
0.24 cu in
Reservoir Capacity
159 cu in
Overall Length
680 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
P143D
Zoro #
G812648268
UPC #
0812761022418
Country of Origin
Taiwan, Province of China
Dimensions
Overall Length
680 mm
Overall Height
181 mm
Overall Width
140 mm
Connection Size
3/8 in
Details
Item
Hand Pump
Number of Stages
2
Displacement per Stroke 1st Stage
2.81 cu in
Displacement per Stroke 2nd Stage
0.24 cu in
Reservoir Capacity
159 cu in
Reservoir Material
Steel
Handle Effort - Maximum
41 kg
Pressure 1st Stage - Maximum
400 psi
Pressure 2nd Stage - Maximum
10,000 psi
Connection Type
FNPT
Cylinder Compatibility
Double Acting
Working Orientation
Horizontal and Vertical
Description
Hand Pump, Reservoir Capacity 159 cu in, Connection Size 3/8 in, Number of Stages 2, Pressure 1st Stage - Maximum 400 psi, Pressure 2nd Stage - Maximum 10,000 psi, Displacement per Stroke 1st Stage 2.81 cu in, Displacement per Stroke 2nd Stage 0.24 cu in, Handle Effort - Maximum 41 kg, Working Orientation Horizontal and Vertical, Connection Type FNPT, Cylinder Compatibility Double Acting, Overall Height 181 mm, Overall Length 680 mm, Overall Width 140 mm, Reservoir Material Steel
