  11. Lifting Bag, 22.7 Ton, 22x22
Shop All Lifting Bag Accessories
Simplex

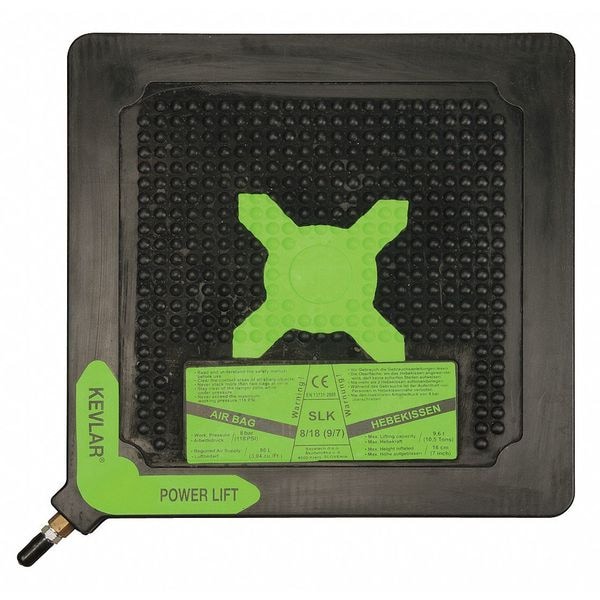

Lifting Bag, 22.7 Ton, 22x22

product price: $2,432.00
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Pneumatic
  • Max. Lift Height (In.) 10 39/64 in
  • Air Required (Cu. Ft.) 10.45 cu ft
  • Capacity (Tons) 22.7 ton
  • Extended Height (In.) 11.7 in
See all product information

Product Information

Dimensions

Max. Lift Height (In.) 10 39/64 in
Extended Height (In.) 11.7 in
Length (In.) 22 in
Collapsed Height (In.) 1.1 in
Width (In.) 22 in
Collapsed Height 1 1/8 in
Inlet Size 1/4 in
Overall Width 22 in
Bag Width 22 in
Maximum Lifting Height 10 5/8 in
Overall Length 22 in
Bag Length 22 in

Details

Item Lifting Bag
Type Pneumatic
Air Required (Cu. Ft.) 10.45 cu ft
Capacity (Tons) 22.7 ton
Reinforcement Kevlar(R)
Connector Type Multiple Options
Material 2 Ply Kevlar(R) with Neoprene
Burst Pressure (PSI) 464 psi
Max. Pressure (PSI) 116 psi
Reinforcement Material Kevlar(R)
Weight Capacity 22.7 ton
Series Series B
Number of Plies Two-Ply
Air Volume Required 10.45 cu ft
For Fluid Type Compressed Air
Maximum Operating Pressure 116 psi
Weight 17.8 lb
Air Inlet Type NPT
Inlet Gender Female
Bag Material Kevlar(R) with Neoprene
System of Measurement Inch

Description

Lifting Bag, Weight Capacity 22.7 ton, Bag Length 22 in, Bag Width 22 in, Maximum Lifting Height 10 5/8 in, Air Volume Required 10.45 cu ft, Bag Material Kevlar(R) with Neoprene, Inlet Size 1/4 in, Air Inlet Type NPT, Number of Plies Two-Ply, Maximum Operating Pressure 116 psi, Reinforcement Material Kevlar(R), Burst Pressure (PSI) 464 psi, Inlet Gender Female, Weight 17.8 lb, For Fluid Type Compressed Air, Series Series B, System of Measurement Inch, Overall Width 22 in, Overall Length 22 in
