  5. Mechanical Push Button Lockset, Satin Chrome, 1-3/4" to 2-1/4" For Door Thickness, 5 Number of Keys

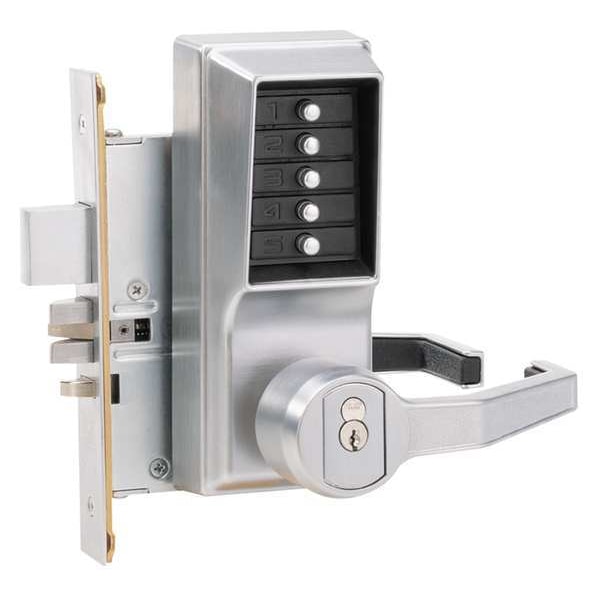

Simplex Mechanical Push Button Lockset, Satin Chrome, 1-3/4" to 2-1/4" For Door Thickness, 5 Number of Keys RR8148B26D41 - main

Mechanical Push Button Lockset, Satin Chrome, 1-3/4" to 2-1/4" For Door Thickness, 5 Number of Keys

  • Mfr # RR8148B26D41

  • Zoro # G8740706

product price:  $702.99
/ea
Free Shipping & Returns

Key Features

For Door Thickness (In.)
1-3/4" to 2-1/4"
Finish
Satin Chrome
Material
Zinc
For Use With
Best Core
Number of Keys
5
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
RR8148B26D41
Zoro #
G8740706
UPC #
-
Country of Origin
Mexico

Dimensions

For Door Thickness (In.)
1-3/4" to 2-1/4"
Manufacturers Warranty Length
3 yr
Outside Depth
3 13/16 in
Outside Width
3 1/8 in
Inside Height
9 in
Outside Height
7 3/8 in
Door Thickness
1-3/4 in to 2-1/4 in
Inside Depth
2 3/8 in
Latch Length
1 in
Inside Width
3 1/4 in
Overall Height
9 in
Overall Width
3 1/8 in
Latch Front Size
1"
Overall Depth
3 13/16 in
Door Thickness - Minimum
1 3/8 in
Door Thickness - Maximum
2 1/4 in

Details

Item
Mechanical Push Button Lockset
Finish
Satin Chrome
Material
Zinc
For Use With
Best Core
Number of Keys
5
Hand
Right Reverse
Includes
Deadbolt, Lockout, Passage, Push Button Access
Key Override Options
Best and Equivalents (6 or 7 Pin Length); LFIC Corbin Russwin (6 Pin Length); Medeco/ASSA/Yale/Abloy (5 or 6 Pin Length)
Function
Deadbolt/Entry with Key Override/Lockout/Passage
Case Material
Zinc
Handle Type
Lever
Series
8100
Keypad
5 Button, Vandal Resistant
Backset
2 3/4 in
Max. User Codes
1
Fire Rated
3 hr
ADA Compliant
Yes
Weather Resistant
Yes
Electrical/Mechanical
Mechanical
Standards
UL/ULC Listed
Operation Type
Push Button
Type
Mechanical
Product Type
Mechanical Push Button Lockset
Fire Rating
3 hr
Operating Temp. Range
-31 Degrees to 151 Degrees F
Max. Proximity Range
At Lock
User Codes - Maximum
1
Lockset Handle Type
Lever
ANSI/BHMA Finish
Satin Chromium-Plated
Hand Orientation
Right-Handed
Mortise/Cylindrical
Mortise
Lockset Type
Mechanical
Includes Core
Core Not Included
Number of Keypad Buttons
5
Includes Hardware
Hardware Included
Lockset Function
Entrance, Passage

Description

Mechanical Push Button Lockset, Handle Type Lever, Function Deadbolt/Entry with Key Override/Lockout/Passage, Key Override Options Best and Equivalents (6 or 7 Pin Length); LFIC Corbin Russwin (6 Pin Length); Medeco/ASSA/Yale/Abloy (5 or 6 Pin Length), Hand Right Reverse, Finish Satin Chrome, Door Thickness 1-3/4 in to 2-1/4 in, Keypad 5 Button, Vandal Resistant, Backset 2 3/4 in, ADA Compliant Yes, 3 hr Fire Rated, Case Material Zinc, Series 8100, Latch Length 1 in, Max. User Codes 1
