  9. Analog Multimeter, 1,000 V, 20 megaohm

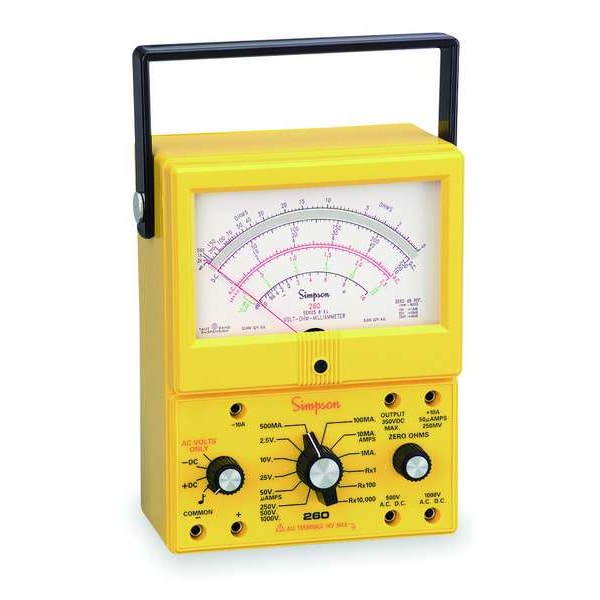

Simpson Electric Analog Multimeter, 1,000 V, 20 megaohm 260-8XI - main

Analog Multimeter, 1,000 V, 20 megaohm

  • Mfr # 260-8XI

  • Zoro # G2188182

product price: $589.99
/ea
Free Shipping & Returns

Key Features

Max. AC Volts
1,000
Audible Continuity
Yes
Includes
Audible Continuity Check, Resettable Overload Protection Circuit, Test Leads with Alligator Clips
Max. DC Amps
10 A
Battery Type
9V, D
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
260-8XI
Zoro #
G2188182
UPC #
-
Country of Origin
United States

Dimensions

Overall Width
3.1 in
Overall Height
7 in
Battery Size
9V; D

Details

Item
Analog Multimeter
Max. AC Volts
1,000
Audible Continuity
Yes
Includes
Audible Continuity Check, Resettable Overload Protection Circuit, Test Leads with Alligator Clips
Max. DC Amps
10 A
Battery Type
9V, D
Sensitivity
20K ohm/V DC, 5K ohm/V AC
Mirrored Scale
Yes
Accuracy
V AC: +/-3% Full Scale, V DC: +/-2% Full Scale
Max. DC Volts
1,000
Decibels
-20 to +50 dB
AC Frequency Response
60 Hz
Max. Ohms
20 megohm
Movement
Taut-Band, Mirrored Scale
Special Features
Large Tri-Colored Dial with Mirrored Scale to Prevent Parallax Error
Basic AC Voltage Accuracy
+/-3.00%
Minimum DC Current Measurement
50 uA
Battery Voltage
1.5V DC; 9V DC
Maximum Resistance Measurement
20 megaohm
Maximum DC Voltage Measurement
1,000 V
Basic AC Current Accuracy
+/-3.00%
Minimum Sound Level Measurement
-20 dB
Minimum AC Voltage Measurement
2.5 V
Batteries Included
Yes
Calibration Certificate Included
No
Parameters Measured
AC Voltage, DC Current, DC Voltage, Resistance
Minimum Resistance Measurement
0 microohm
Basic DC Current Accuracy
+/-1.50%
Maximum DC Current Measurement
10 A
Minimum DC Voltage Measurement
250 V
Basic DC Voltage Accuracy
+/-2.00%
Maximum AC Voltage Measurement
1,000 V
Maximum Sound Level Measurement
50 dB
Resistance Measurement Accuracy
Rx1 2.5 Degrees of Arc, Rx100 2.0 Degrees of Arc, Rx10000 2.0 Degrees of Arc

Description

Analog Multimeter, Basic AC Current Accuracy +/-3.00 Percent, Resistance Measurement Accuracy Rx1 2.5 Degrees of Arc, Rx100 2.0 Degrees of Arc, Rx10000 2.0 Degrees of Arc, Basic DC Current Accuracy +/-1.50 Percent, AC Frequency Response 60 Hz, Parameters Measured AC Voltage, DC Current, DC Voltage, Resistance, Basic AC Voltage Accuracy +/-3.00 Percent, Basic DC Voltage Accuracy +/-2.00 Percent, Minimum AC Voltage Measurement 2.5 V, Maximum AC Voltage Measurement 1,000 V
