Knee Brace Stabilizer

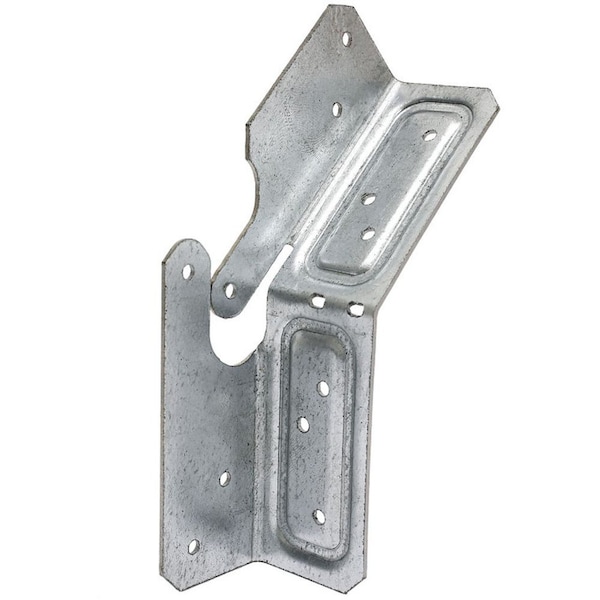

Simpson Strong-Tie KBS1Z - Knee Brace StabilizerThe KBS1Z knee brace stabilizer makes a structural connection between knee bracing and columns or beams to help stabilize freestanding structures and comply with many prescriptive deck bracing requirements such as AWC, DCA6 Prescriptive Residential Wood Deck Construction Guide. Factory-formed at a 451/4 angle and easily installed with nails, the KBS1Z braces 2x, 4x and 6x in line post-to-beam configurations. Check with your local building department for deck bracing requirements.Features: For installations at an angle other than 451/4, bend KBS1Z along slots to desired angle; bend one time onlyFor equal-Width members, install 2 KBS1Z on each end of braceFor 2x knee brace, install single KBS1Z on each end of braceBeam-to-post: Install in pairsMade from 16-gauge steelZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications Specifications: Install WithInstall with 8d or 8d x 1-1/2 in. nailsPackaging Quantity1Gauge16CoatingZMAX1/4FinishZMAX1/4ColorNone
