  11. UPS Module, Out: 24V DC , In:24V DC

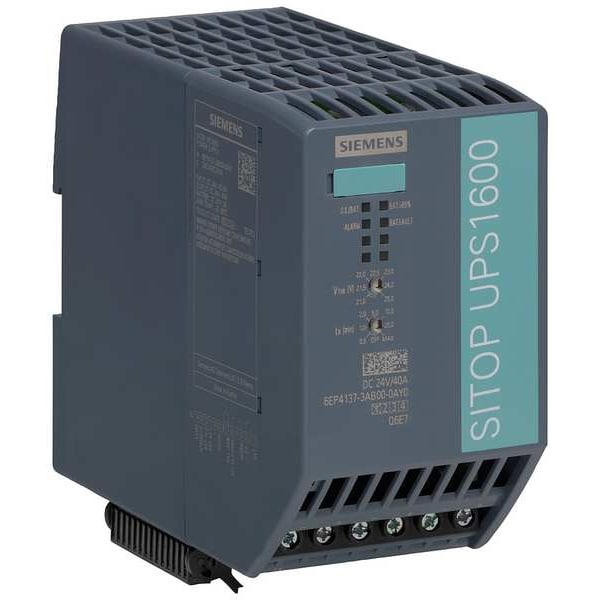

Sitop UPS Module, Out: 24V DC , In:24V DC 6EP41373AB000AY0 - main

UPS Module, Out: 24V DC , In:24V DC

  • Mfr # 6EP41373AB000AY0

  • Zoro # G7894506

product price: $1,167.99
/ea
Free Shipping & Returns

Key Features

Input Voltage - UPS Systems
24V DC
Mounting
DIN Rail
Output Voltage - UPS Systems
24V DC
Input Voltage
24V DC
Output Voltage
24V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6EP41373AB000AY0
Zoro #
G7894506
UPC #
887621884710
Country of Origin
Austria

Dimensions

Height
6 in
Width
3 in
Depth
2 in
Overall Height
5.47 in
Overall Depth
4.92 in
Overall Width
5.87 in

Details

Item
UPS Module
Input Voltage - UPS Systems
24V DC
Mounting
DIN Rail
Output Voltage - UPS Systems
24V DC
Input Voltage
24V DC
Output Voltage
24V DC
Medical Grade
Not Medical Grade Approved
Input Current
46 A
Housing Material
Metal
Special Features
Specifications at Rated Input Voltage and Ambient Temperature +25 Degrees C (unless otherwise specified)
Display Type
LED
Standards
cCSAus, CE, CSA C22.2 No. 107.1, cULus-Listed, EAC, UL, UL 508, UL 60950-1
Output voltage for SPC is regulated
Yes
Output current
40 ampere
min. rated supply voltage with DC
21 volt
max. rated supply voltage with DC
29 volt
Protection type IP
IP20
description of product type
DC UPS 24 V/40 A
min. output voltage
18.5 volt
Product name
SITOP UPS1600
Supply voltage type
DC
max. output voltage
27 volt
Number of Outlets - UPS
0
Operating Temperature - Maximum
158 Degrees F
Input Current - Maximum
40 A
Power Rating - Apparent
600 VA
Power Rating - Real
960 W
Receptacle Configuration
Hardwired
Operating Temperature - Minimum
-13 Degrees F

Description

UPS Module, Input Voltage 24V DC, Output Voltage 24V DC, Medical Grade Not Medical Grade Approved, Width 3 in, Depth 2 in, Height 6 in, Display Type LED, Input Current 46 A, Not Applicable Phase, Special Features Specifications at Rated Input Voltage and Ambient Temperature +25 Degrees C (unless otherwise specified), Standards cCSAus, CE, CSA C22.2 No. 107.1, cULus-Listed, EAC, UL, UL 508, UL 60950-1
