  9. NO AmpMaster Pump Switch 125/250VAC

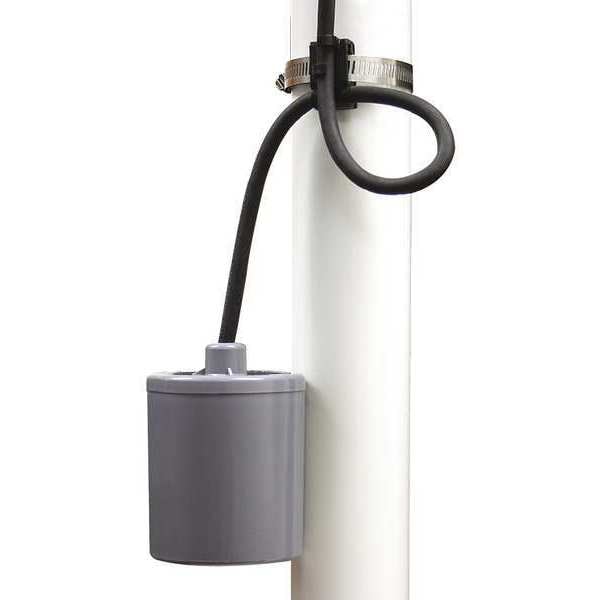

Sje-Rhombus NO AmpMaster Pump Switch 125/250VAC 20AMDWOP - main

NO AmpMaster Pump Switch 125/250VAC

  • Mfr # 20AMDWOP

  • Zoro # G0485432

product price: $155.99
/ea
Free Shipping & Returns

Key Features

Switch Type
Tether Float
Voltage
125/250VAC
Amps
20 A
Type
Tether
Max. Liquid Temp.
120 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
20AMDWOP
Zoro #
G0485432
UPC #
-
Country of Origin
United States

Dimensions

Tether Length Min.-Max.
5" to 22"
Length
20 Ft
Overall Length (In.)
243.56
Float Switch Cord Length
20 ft.
Float Dia. (In.)
3
Float Length (In.)
3.56
Float Length
3 5/8 in
Manufacturers Warranty Length
5 yr
Float Dia.
3 1/16 in
Maximum Tether Length
22 in
Minimum Tether Length
5 in
Cord Length
20 ft
Tether Length - Minimum
5 in
Float Diameter
3 1/8 in
Tether Length - Maximum
22 in

Details

Switch Type
Tether Float
Voltage
125/250VAC
Item
Float Switch
Amps
20 A
Type
Tether
Max. Liquid Temp.
120 Degrees F
Turns Off At
45 degrees
Electrical Connection - Pumps
Wire Leads
Float Switch Type
Tether
Includes
Pipe Clamp
Wire Gauge
12
Series
AmpMaster
Electrical Connection (Pumps)
Wire Leads
Body Material
PVC
Float Switch Contact Form
Normally Open
Agency Compliance
CSA, UL
HP @ 1 Phase - 230V
3 or Less
Teather/Solid State
Tether
Float Switch Float Material
PVC
Pumping Range Min./Max.
9 to 24
Mounts
Hose Clamp
Float Switch On Point
45 Degrees Above Horizontal
For Use With
Pumps
Mounting Bracket Material
ABS/Nylon
Float Material
PVC
HP @ 1 Phase - 115V
1 1/2 or Less
Float Switch Off Point
45 Degrees Below Horizontal
Contact Form
Normally Open
Standards
CSA, UL Listed
Switch Actuation
Tether Float
Electrical Connection
2-Conductor Wire Leads
Rated Voltage
125/250V AC
On Point
45 Degrees Above Horizontal
Off Point
45 Degrees Below Horizontal
Contact Default
Normally Open
NEC Cord Designation
SJOW
Electric Load Current - Maximum
20 A @ 125V AC, 20 A @ 250V AC
Actuation Method
Mechanically-Activated
Liquid Temperature - Maximum
120 Degrees F
Electric Load Current - Minimum
1 A @ 120V AC, 1 A @ 250V AC
Starting Current - Maximum
120 A
Counterweight Type
No Counterweight
Compatible Pump Type
Sewage Pump, Sump Pump
Compatible Manufacturer Part Number
20AMDWOP
Running Current - Maximum
20 A
Number of Floats
1

Description

Float Switch
