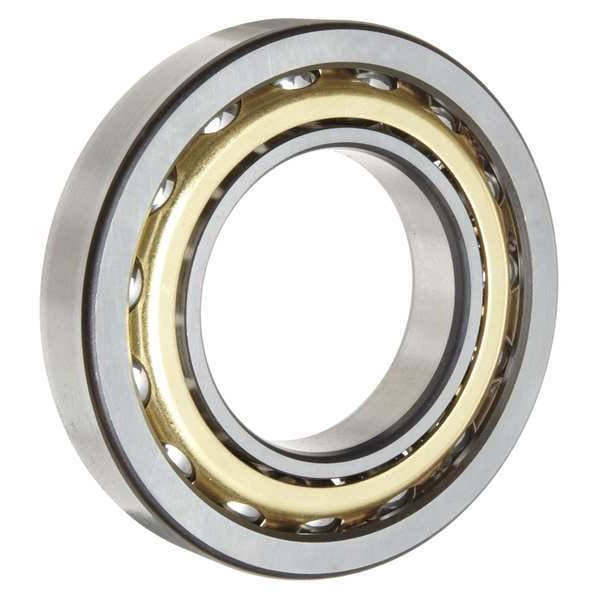

Skf Angular Contact Bearing, 75mm, O.D. 160mm 7315 BECBM - main

Angular Contact Bearing, 75mm, O.D. 160mm

  • Mfr # 7315 BECBM

  • Zoro # G7836281

product price: $603.99
/ea
Free Shipping & Returns

Key Features

Contact Angle (Degree)
40 Degrees
Bore Dia.
75 mm
Outside Dia.
160 mm
Width
37 mm
Cage Material
Brass
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
7315 BECBM
Zoro #
G7836281
UPC #
-
Country of Origin
Multiple

Dimensions

Bore Dia.
75 mm
Outside Dia.
160 mm
Width
37 mm
Overall Width
37 mm
Outside Diameter
160 mm
Housing Fillet Radius
1 mm
Bore Diameter
75 mm
Shaft Fillet Radius
1 mm

Details

Item
Angular Contact Ball Bearing
Contact Angle (Degree)
40 Degrees
Cage Material
Brass
Type
Single Row Explorer
Max. RPM
5,300 RPM
Static Load Capacity (Lb.)
23,800 lb
Lubrication
MT47 Grease
Dynamic Load Capacity (N)
132,000 N
ABEC Tolerance
3
Standard Preload (lbs.)
86 lb
Dynamic Load Capacity (Lb.)
29,700 lb
Standard Preload (N)
380 N
Temp. Range (F)
-40 Degrees to 212 Degrees
Static Load Capacity (N)
106,000 N
Maximum Speed
5,300 RPM
Ring Material
Alloy Steel
System of Measurement
Metric
Closure
Open
Ring Material Grade
100Cr6
Number of Rows
One
Dynamic Radial Load Capacity
132,000 lbf
Preload
383 N
Maximum Temperature
100 Degrees C
Contact Bearing Type
Angular Contact
Load Direction
Radial, Thrust
Minimum Temperature
-40 Degrees C
Matched Bearing Type
Duplex
Contact Angle
40 Degrees
Bearing Industry Number
7315
Lubricant Material
MT47 Grease
Matched Mount Type
Tandem
ABEC Rating
3
Static Radial Load Capacity
103,990 N

Description

Angular Contact Ball Bearing, Bearing Industry Number 7315, Bore Diameter 75 mm, Cage Material Brass, Closure Open, Contact Angle 40 Degrees , Contact Bearing Type Angular Contact, Lubricant Material MT47 Grease, Matched Bearing Type Duplex, Maximum Speed 5,300 RPM, Maximum Temperature 100 Degrees C, Minimum Temperature -40 Degrees C, Number of Rows One, Outside Diameter 160 mm, Overall Width 37 mm, Ring Material Alloy Steel, System of Measurement Metric, ABEC Rating 3
