  11. Shaft Seal, 17 x 40 x 7 mm., HMS5, Nitrile Rubber
Shop All Shaft Seals & Adapters
Skf

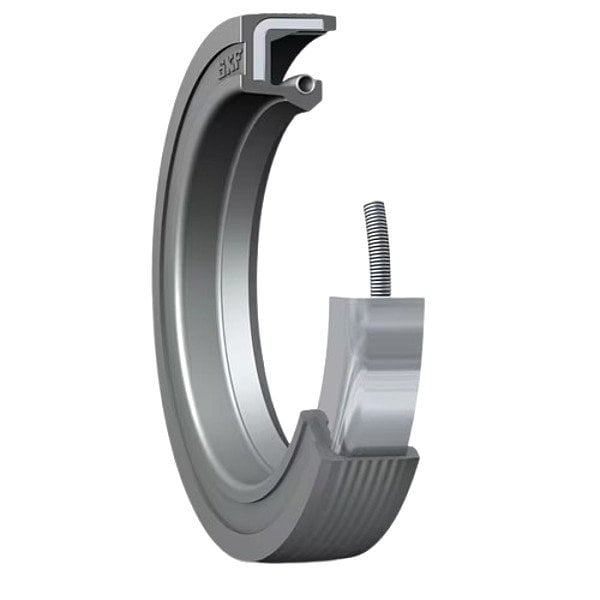

Shaft Seal, 17 x 40 x 7 mm., HMS5, Nitrile Rubber

product price: $3.29
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Seal Type Straight Lip Seal
  • Inside Dia. 17 mm
  • Outside Dia. 40 mm
  • Width 7 mm
  • Lip Material Nitrile Rubber
See all product information

Product Information

Dimensions

Inside Dia. 17 mm
Outside Dia. 40 mm
Width 7 mm
Outside Diameter 40 mm
Inside Diameter 17 mm
Overall Width 7 mm

Details

Item Rotary Shaft Seal
Seal Type Straight Lip Seal
Lip Material Nitrile Rubber
Design Code HMS5
Max. Pressure 7 psi
Maximum Pressure 7 psi
Minimum Temperature -40 Degrees C
Maximum Surface Speed 3.5 mps
Maximum Rotational Speed 3,900 RPM
Standards ISO Certified 6194
Spring Type Garter
System of Measurement Metric
Resistance Properties Chemical Resistant
Number of Lips 1
Spring Reinforcement Yes
Maximum Temperature 100 Degrees C
Contact Type Contact Seal
For Fluid Type Animal and Vegetable Oils, Diesel, Gasoline, Greases, Hot Water, Light Heating Oil, Mineral Oils
Case Coating None

Description

Rotary Shaft Seal, Design Code HMS5, Inside Diameter 17 mm, Outside Diameter 40 mm, Overall Width 7 mm, Contact Type Contact Seal, Lip Material Nitrile Rubber, Maximum Pressure 7 psi, Number of Lips 1, System of Measurement Metric, Case Coating None, For Fluid Type Animal and Vegetable Oils, Diesel, Gasoline, Greases, Hot Water, Light Heating Oil, Mineral Oils, Maximum Rotational Speed 3,900 RPM, Maximum Surface Speed 3.5 mps, Maximum Temperature 100 Degrees C, Minimum Temperature -40 Degrees C
