Zoro Homepage

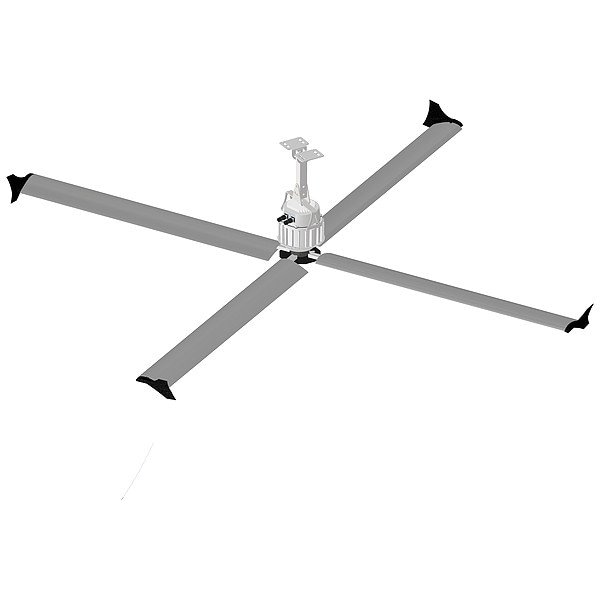

Comercial Ceiling Fan, 16 ft Blade Dia, 4 Blades, Variable Speeds, 460V AC, Silver

  • Mfr # G420-1649-446-3

  • Zoro # G205293433


product price: $5,332.99
/ea
Item requires special delivery charges. A $100.00 per item surcharge will be applied.

Key Features

Number of Blades
4
Blade Diameter
16 ft
Number of Speeds
Variable
Voltage
460V AC
Includes
Airfoils, Fan Motor Assembly, Hardware, Manual Controller, Mounting Brackets, Safety Cable, Wires
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
G420-1649-446-3
Zoro #
G205293433
UPC #
-
Country of Origin
United States

Dimensions

Blade Diameter
16 ft
Down Rod Outside Dia.
2 in
Max. Mounting Height
29 ft
Min. Mounting Height
12 ft

Details

Number of Blades
4
Number of Speeds
Variable
Voltage
460V AC
Includes
Airfoils, Fan Motor Assembly, Hardware, Manual Controller, Mounting Brackets, Safety Cable, Wires
Reversible
Yes
Phase
3
Housing Finish
Silver
Blade Material
Aluminum
Amps
5.2 A
Item
Comercial Ceiling Fan
Fan Blade Color
Silver
Blade Finish
Anodized Aluminum
RPM
63 RPM
Area Covered (Cooling) - Fans
5,026 sq ft
Standards
C-TICK, CAN/CSA, CE. UL
Area Covered (Destratification) - Fans
20,096 sq ft
Thermal Protection
Auto
Motor Insulation
Class F
Speed Controllable - Fans
Yes
Max. Ambient Temp.
104 Degrees F
Fan Watts
598 W
Mount Type
Bracket
Hz
50/60 Hz
Environmental Applications
Commercial, Industrial
Motor Design
3-Phase
Fan Mounting Location
Ceiling
Motor HP
1 7/20 hp
Sound Level
35 DBA @ 20 ft
Motor Enclosure
Brushless DC
Bearing Type
Permanently Lubricated and Sealed
Series
G420
Light Kit
No Light
Fan Housing Color
Silver

Description

Comercial Ceiling Fan, 16 ft Blade Diameter, 460V AC Voltage, 598 W Fan Watts, Phase 3, Not Applicable, Motor HP 1 7/20 hp, 63 RPM RPM, Max. Mounting Height 29 ft, Min. Mounting Height 12 ft, Number of Speeds Variable, Blade Material Aluminum, Blade Finish Anodized Aluminum, Fan Housing Color Silver, Housing Finish Silver, Fan Blade Color Silver, Number of Blades 4, Sound Level 35 DBA @ 20 ft, Speed Controllable - Fans Yes, 5.2 A Amps, Bearing Type Permanently Lubricated and Sealed, 50/60 Hz Hz
