Manual Flush Valve, 3.5 gpf, 11-1/2 in Rough-In, 1 in IPS Inlet Size, Single Flush, Top Spud, Chrome

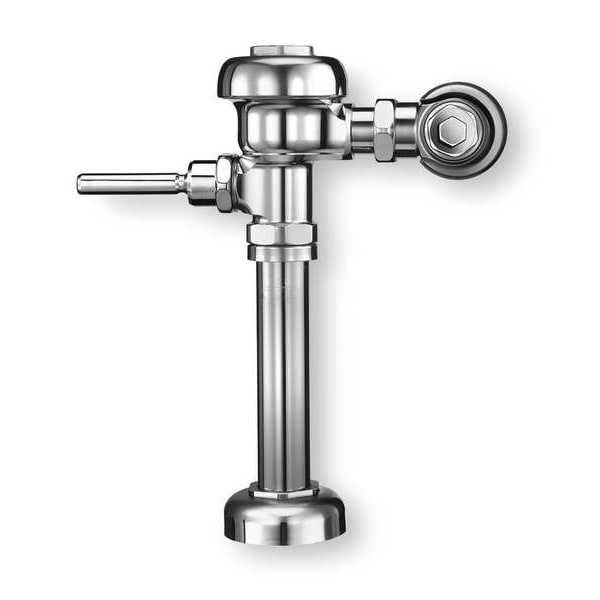

The SLOAN Regal 110 XL is a manual toilet flush valve for top spud toilet installations. It uses a diaphragm valve design with single-flush operation at 3.5 gallons per flush and is designed for use with 1 in inlet connections and 1-1/2 in top spud connections. The valve has a chrome-plated finish, an adjustable tailpiece, and is intended to operate within a pressure range of 25 to 100 psi.

Key Features:

• 3.5 gpf flush volume: Supports low-consumption toilet flushing.
• Manual operation: Activated by a non-hold-open oscillating handle to limit flush volume to the intended amount.
• Para-Flo technology: Controls flush accuracy for low-consumption performance.
• Top spud connection: Made for toilets with a top spud fixture connection.
• Diaphragm valve design: Uses a diaphragm-style flush valve mechanism.
• Chrome-plated body: Provides a chrome-plated exterior finish.
• Pressure range: Rated for 25 to 100 psi operating pressure.
• Included components: Includes an ADA handle, sweat solder adapter with cover tube and cast set screw wall flange, and a vandal-resistant stop cap with set screw.
• Brass construction details: Valve body, cover, tailpiece, and control stop are made to ASTM alloy classification for semi-red brass; high-copper, low-zinc brass castings are used for dezincification resistance.
• Standards: ASSE 1037.
