Manual Flush Valve, Top Spud, Single Flush, 1.6 gpf, 11-1/2 in Rough-In, 1 in IPS Inlet Size, Chrome

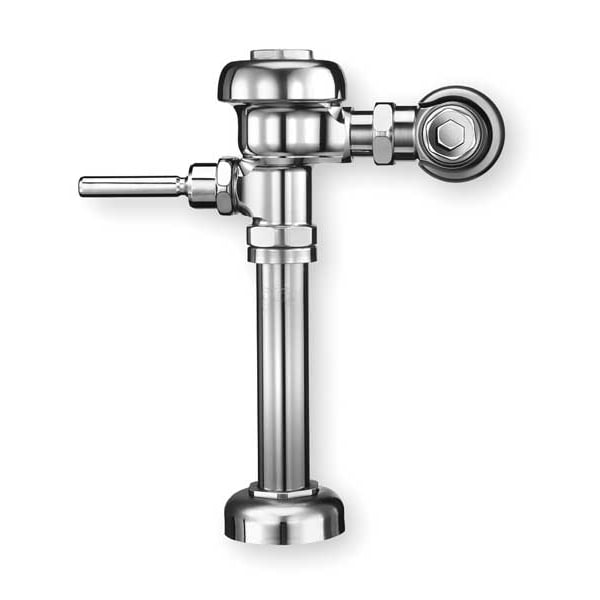

The SLOAN Regal 111 XL is a manual diaphragm flush valve for toilets with a top spud connection. It is designed for single-flush operation at 1.6 gallons per flush and is used with toilet fixtures requiring a 1 in inlet and 1-1/2 in spud connection. The valve has a chrome-plated finish, a top connection location, and an adjustable tailpiece to support installation.

Key Features of the SLOAN Regal 111 XL Manual Flush Valve:

• Manual Operation: Activated by a non-hold-open oscillating handle that helps limit the flush to the intended volume.
• Flush Volume: Rated at 1.6 gpf for low-consumption toilet flushing.
• Valve Design: Diaphragm-style valve with Para-Flo™ Technology for flush accuracy.
• Pressure Range: Operates from 25 to 100 psi.
• Connections: 1 in inlet with 1-1/2 in top spud coupling for toilet applications.
• Construction: Valve body, cover, tailpiece, and control stop are made to ASTM alloy classification for semi-red brass; high-copper, low-zinc brass castings are used for dezincification resistance.
• Included Components: ADA handle, sweat solder adapter with cover tube and cast set screw wall flange, and vandal-resistant stop cap with set screw.
• Standards: Listed as ADA, ANSI, ASSE 1037.
