  11. Sensor Single Hole Mount, 1 Hole Angled Straight Bathroom Faucet, Polished chrome
Shop All Touchless Bathroom Faucets
Sloan

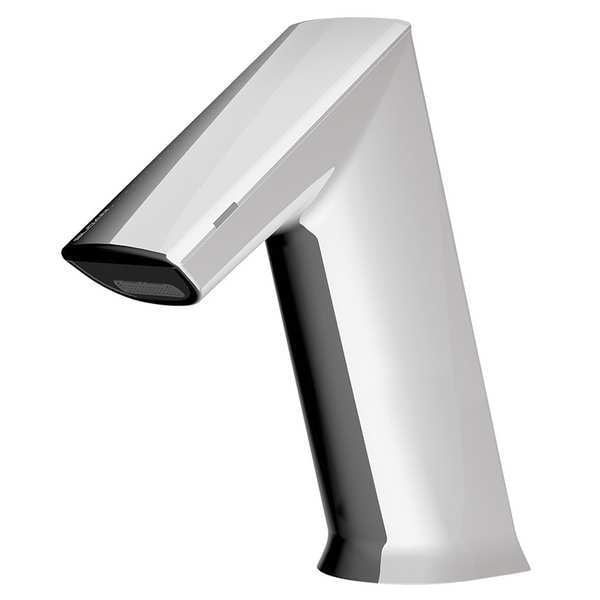

Sensor Single Hole Mount, 1 Hole Angled Straight Bathroom Faucet, Polished chrome

product price: $740.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Faucet Operation Sensor
  • Material Die Cast Metal
  • Mounting Hole Center to Center Single Hole
  • Number of Holes 1
  • Height 6-15/32"
See all product information

Product Information

Dimensions

Height 6-15/32"
Spout Length 5 7/32 in
Connection Size 3/8" Compression
Manufacturers Warranty Length 3 yr
Overall Height 6-15/32"
Water Inlet Connection Size 3/8 in
Spout Height 6 15/32 in
Hose Length 13"

Details

Faucet Operation Sensor
Material Die Cast Metal
Mounting Hole Center to Center Single Hole
Number of Holes 1
Mounting Type Single-Hole Mount
ADA Compliant Yes
Finish Chrome
Handle Type Sensor
Flow Rate 1.5 gpm
Faucet Spout Shape Angled Straight
Number of Handles 0
Body Material Zinc Die Cast
Voltage 6V DC
Flow Outlet Type Aerated
Valve Type Compression
Series BASYS
Standards AB1953, ANSI A117.1, ASME A112.18.1/CSA B125.1, NSF 372, NSF 61/9
Faucet Type Bathroom Sink Faucet
CEC Compliant Non CEC Compliant
Flow Outlet Type (Faucet) Aerated
Residential / Commercial Commercial
Faucet Spout Standard
Faucet Finish Chrome
Sensor Lead Infrared
Includes Battery Back Up (4) AA Alkaline Battery
Drain Type None
Connection 3/8" Compression
Power Source Electronic
Green Certification or Other Recognition WaterSense Approved
Battery Charger CEC Compliant Non CEC Compliant
Mounting Type - Faucet Deck
Green Environmental Attribute Faucet Flow Rate 1.5 gpm Or Less
Commercial / Residential Commercial
Item Angled Straight Bathroom Faucet
Vandal Resistant Features Vandal Resistant Outlet
ADA Compliance Yes
Temp. Control No
Ligature Resistant No
Amps 2 A
Replacement Cartridge None
Sensor Range 4 in to 5 in
Compliance ASME A112.18.1M, CSA B125.1, California Health and Safety Code 116875 (AB 1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content Certified to NSF/ANSI 61, Section 9 by CSA, ADA ANSI/ICC A117.1
Flow Outlet Type - Faucet Aerated
Faucet Handle Type None
Type Electronic
Faucet Body Material Cast Zinc
Faucet Activation Motion Sensor
Water Inlet Connection Type Push in Compression
Spout Reach 5 7/32 in
Temperature Control No
Max. Installation Surface Thickness 1 1/2 in
Max. Mounting Hole Center Distance Single Hole
Valve Type - Faucets Hot/Cold Cartridge
Material of Construction Zinc Die Cast
Outlet Type Laminar

Description

Item Angled Straight Bathroom Faucet

Restrictions
