Shop SLOAN

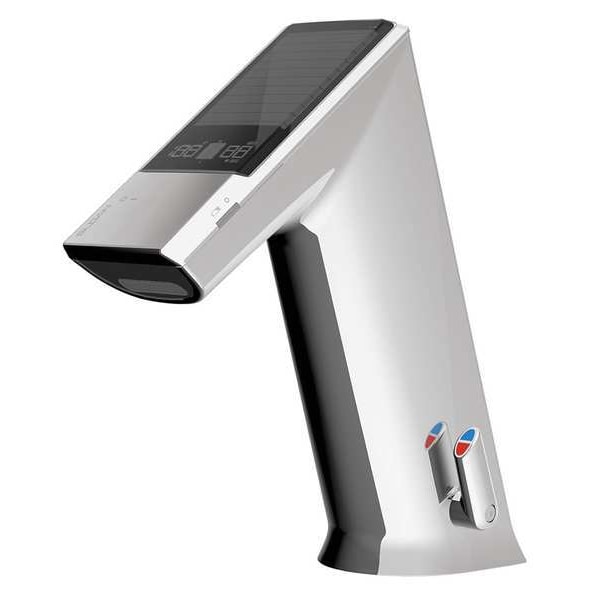

Sensor Single Hole Mount, 1 Hole Angled Straight Bathroom Faucet, Polished chrome

  • Mfr # EFX277.502.0000
  • Zoro # G5284361
product price:
$
1,523.99
/ea
Free Shipping & Returns

Key Features

Material
Die Cast Metal
Height
6-15/32"
Application
Commercial
Finish
Chrome
Compliance
ASME A112.18.1M, CSA B125.1, California Health and Safety Code 116875 (AB 1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content Certified to NSF/ANSI 61, Section 9 by CSA, ADA ANSI/ICC A117.1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EFX277.502.0000
Zoro #
G5284361
UPC #
671254391840
Country of Origin
Switzerland

Dimensions

Height
6-15/32"
Spout Length
5 7/32 in
Overall Height
6-15/32"
Manufacturers Warranty Length
3 yr
Connection Size
3/8" Compression
Max. Installation Surface Thickness
1 1/2 in
Water Inlet Connection Size
3/8 in
Spout Height
6 15/32 in
Hose Length
13"
Overall Width
2 1/4 in
Spout Height - Maximum
6 15/32 in
For Surface Thickness - Maximum
1 1/2 in
For Mounting Hole Diameter - Minimum
1 3/16 in
Spout Outlet Height
3 1/2 in
Inlet Connection Size
3/8 in

Details

Material
Die Cast Metal
Application
Commercial
Finish
Chrome
Item
Bathroom Sensor Faucet
Compliance
ASME A112.18.1M, CSA B125.1, California Health and Safety Code 116875 (AB 1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content Certified to NSF/ANSI 61, Section 9 by CSA, ADA ANSI/ICC A117.1
Number of Holes
1
Faucet Spout
Standard
Connection
3/8" Compression
Vandal Resistant Features
Vandal Resistant Outlet
Mounting Hole Center to Center
Single Hole
ADA Compliance
ADA Compliant
Drain Type
None
Faucet Finish
Chrome
Faucet Type
Bathroom Sink Faucet
Amps
2 A
Temp. Control
Yes
Green Certification or Other Recognition
WaterSense Certified
Body Material
Cast Zinc
Valve Type
Compression
Replacement Cartridge
None
Flow Outlet Type (Faucet)
Aerated
Battery Charger CEC Compliant
Non CEC Compliant
Faucet Handle Type
None
Faucet Operation
Sensor
Sensor Lead
Infrared
Flow Rate
1.5 gpm
Residential / Commercial
Commercial
Ligature Resistant
No
Sensor Range
4 in to 5 in
Power Source
Solar
Flow Outlet Type - Faucet
Aerated
Mounting Type - Faucet
Deck
CEC Compliant
Non CEC Compliant
Standards
AB1953, ANSI A117.1, ASME A112.18.1/CSA B125.1, NSF 372, NSF 61/9
Mounting Type
Single-Hole Mount
Voltage
6V DC
Faucet Spout Shape
Angled Straight
Commercial / Residential
Commercial
Flow Outlet Type
Aerated
ADA Compliant
Yes
Number of Handles
0
Series
BASYS
Green Environmental Attribute
Faucet Flow Rate 1.5 gpm Or Less
Includes
LCD Display, Mounting Hardware
Type
Electronic
Max. Mounting Hole Center Distance
Single Hole
Faucet Body Material
Cast Zinc
Spout Reach
5 7/32 in
Faucet Activation
Motion Sensor
Temperature Control
Adjustable Temperature
Water Inlet Connection Type
Push in Compression
Valve Type - Faucets
Hot/Cold Cartridge
Sensor Type
Self-Adjusting
Material of Construction
Zinc Die Cast
Outlet Type
Aerated
Warranty
3 yr
Includes Batteries
Batteries Included
Vandal Resistance
Vandal-Resistant Outlet
Operation Method
Motion Sensor
Spout Shape
Angled Straight
Flow Type
Aerated
Compatible Cartridge Manufacturer Part Number
None
Water Supply Type
Hot and Cold Lines
Sensor Range - Minimum
4 in
Temperature Control Method
Integrated Side Mixing Valve
Time Out
60 sec
Current
2 A
Inlet Connection Type
Compression
Sensor Range - Maximum
5 in
Includes Handle
Handle Not Included
CEC Compliance
Not CEC Compliant
For Location
Bathroom
Product Type
Sensor Faucet
Number of Mounting Holes
1
Ligature Resistance
Not Ligature-Resistant
Flow Rate - Maximum
1.5 gpm
Power Source - TS Only
Solar
Power Source - old
Solar

Description

Bathroom Faucet, Faucet Operation Sensor, Handle Type Sensor, Connection 3/8 In. Compression, 1.5 gpm Flow Rate, Number of Holes 1, Mounting Hole Center to Center 1 In., Body Material Zinc Die Cast, Faucet Spout Standard, ADA Compliant Yes, Drain Type None, Mounting Type Deck, Power Source Solar and Battery Powered, Voltage 6VDC, 2 AC Amps, Spout Length 5-7/32 In., Sensor Range 4 In. to 5 In., Valve Type Solenoid, Finish Chrome, Overall Height 6-15/32 In., Flow Outlet Type Aerated
