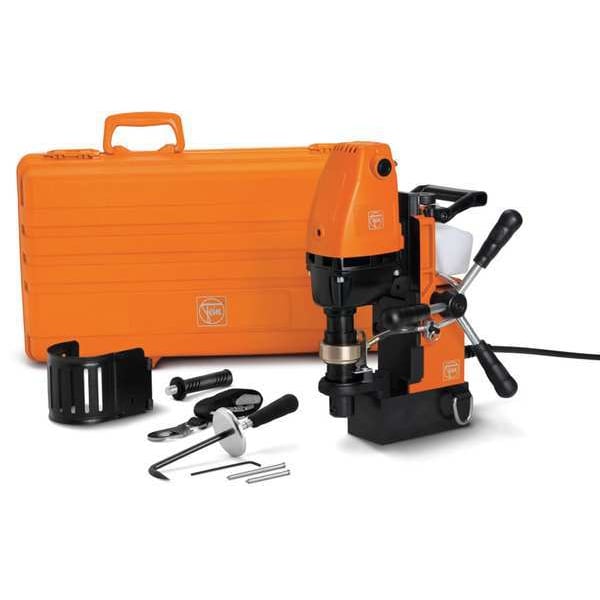

Slugger By Fein Magnetic Drill Press Kit, Drill D 2 916 JME USA 101 - main

Magnetic Drill Press Kit, Drill D 2 916

  • Mfr # JME USA 101

  • Zoro # G1078025

product price: $1,538.99
/ea
Free Shipping & Returns

Key Features

Voltage
120V AC
Spindle Taper
3/4 in
Drill Travel
2 9/16 in
Capacity Steel
1 1/2 in
No Load RPM
450
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
JME USA 101
Zoro #
G1078025
UPC #
04014586700618
Country of Origin
India

Dimensions

Overall Height
17 3/4 in
Tool Length
9 3/8 in
Tap Size Capacity
1/2 in
Chuck Size
5/8 in
Cord Length
12.5 ft

Details

Item
Magnetic Drill Press
Voltage
120V AC
Spindle Taper
3/4 in
Drill Travel
2 9/16 in
Capacity Steel
1 1/2 in
No Load RPM
450
Amps
11.5 A
Drill Point Pressure
2,000 lb
Magnet Type
Electro
Corded/Cordless
Corded
Includes
Cutter Shield, Safety Strap, Storage Case
Features
Magnet Circuitry Prevents Drill Motor from Starting on Non-Ferrous Material or Ferrous Material that is Too Thin to Allow Proper Magnetic Adhesion and will also Shut Motor Down if Magnet Should Break Free from the Work
Drill to Center From Base
1 7/8 in
Tool Weight
31.7 lb
Reversible
No
Corded/Banded
Corded
Motor HP
1 3/4 hp
Series
JME
Tapping Capacity in Masonry
1/2 in
Drilling Capacity in Stainless Steel
1 1/2 in
Variable Speed
No
Drilling Capacity in Wood
1 1/2 in
Maximum Core Bit Compatibility
1 1/2 in
Number of Spindle Speeds
1
Minimum Working Speed
330 RPM
Maximum Spindle Speed
480 RPM
Power Down Feed Included
No
Coolant System
Yes
Application
Drilling
Power Source
Corded
Drilling Capacity in Steel
1 1/2 in
Tapping Capacity in Aluminum
1/2 in
Drilling Capacity in Aluminum
1 1/2 in
Tapping Compatible
No
Spindle Travel
2 in
Magnetic Force
9,000 N
Current
11.5 A
Base Type
Magnetic
Tool Style
Compact
Chuck Style
Keyed
Tapping Capacity in Cast Iron
1/2 in
Number of Pieces
9
Drilling Capacity in Cast Iron
1 1/2 in
Maximum Working Speed
450 RPM
Drilling Capacity in Masonry
1 1/2 in
Phase
Single-Phase
Tapping Capacity in Wood
1/2 in
Tapping Capacity in Steel
1/2 in
Shop By
Hot Buys

Description

Drill Press, Magnet Type Electric, Variable Speed No, Drilling Capacity in Steel 1 1/2 in, Drilling Capacity in Wood 1 1/2 in, Drilling Capacity in Cast Iron 1 1/2 in, Drill Travel 2 9/16 in, Maximum Spindle Speed 480 RPM, Minimum Spindle Speed 330 RPM, Current 11.5 A, Voltage 120V AC, Phase Single-Phase, Base Type Magnetic, Spindle Taper 3/4 in, Chuck Size 5/8 in, Chuck Style Weldon, Drill Point Pressure 2,000 lb, Power Down Feed Included No, Coolant System Yes, Tool Style Compact
