Slugger By Fein

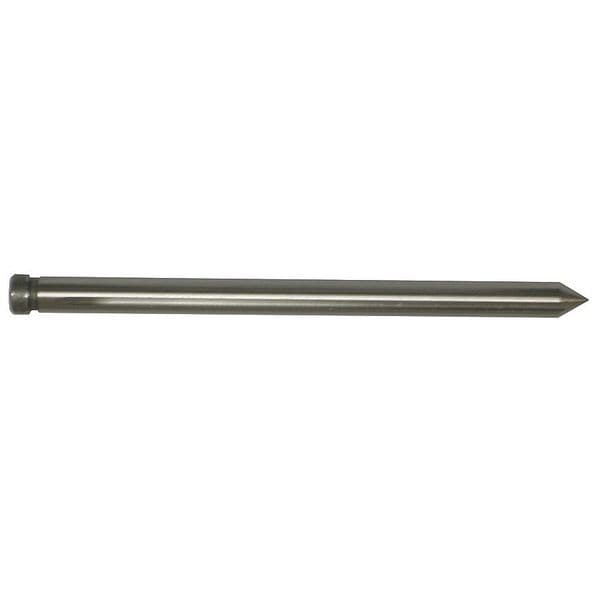

Pilot Pin, 9/16-2 In Dia, 2 In D

original price: $19.61
26% off
new price: $14.35
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Design Standard
  • For Use With AJMU 137 PMQW, AJMU 137 PMQW Select, JCM 200 auto, JCM 200 QX, JCM 200 U, JCM 256 U, JHM Magforce, JHM ShortSlugger, JHM USA 101, JME Holemaker III, JMU 137 MQW, JMU 137 PQW, JMU 137-2 QW, JMU 404 M
  • Shank Dia. 3/4 in
  • Cutting Depth 2 in
  • Measurement System Fractional Inch
See all product information

Product Information

Dimensions

Shank Dia. 3/4 in
Cutting Depth 2 in
Pin Head Height 3/16 in
Pin Shank Length 3 3/4 in
Pin Head Diameter 9/32 in
Pin Shank Diameter 1/4 in
For Annular Cutter Shank Diameter 9/16 in
For Minimum Annular Cutter Diameter 9/16 in
For Maximum Annular Cutter Diameter 4 in
For Annular Cutter Cutting Depth 2 in
Overall Pin Length 3 15/16 in

Details

Design Standard
Item Replacement Pilot Pin
For Use With AJMU 137 PMQW, AJMU 137 PMQW Select, JCM 200 auto, JCM 200 QX, JCM 200 U, JCM 256 U, JHM Magforce, JHM ShortSlugger, JHM USA 101, JME Holemaker III, JMU 137 MQW, JMU 137 PQW, JMU 137-2 QW, JMU 404 M
Measurement System Fractional Inch
Pin Style Standard
Compatible with Product Type Annular Cutter
End Style Point
For Annular Cutter Material High Speed Steel
Shank Type - Machining Weldon Flat
Material - Machining Steel
Magnetism Magentic
Sub Brand Slugger

Description

Replacement Pilot Pin, Steel, AJMU 137 PMQW, AJMU 137 PMQW Select, JCM 200 auto, JCM 200 QX, JCM 200 U, JCM 256 U, JHM Magforce, JHM ShortSlugger, JHM USA 101, JME Holemaker III, JMU 137 MQW, JMU 137 PQW, JMU 137-2 QW, JMU 404 M, 3 15/16 in Overall Pin Length, Pin Shank Diameter 1/4 in, Standard, For Annular Cutter Cutting Depth 2 in
