  11. 1/4" Tube x R(PT) SS Male 90 Degree Elbow
Shop All Push On Hose Fittings
Smc

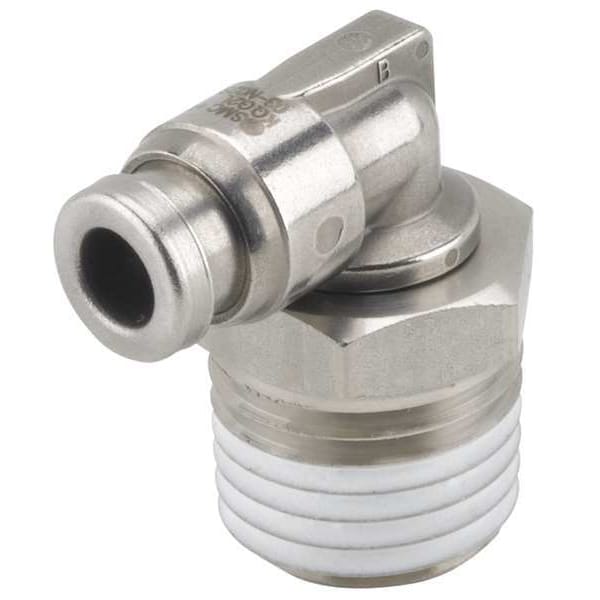

1/4" Tube x R(PT) SS Male 90 Degree Elbow

product price: $54.59
/ea
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Max. Pressure 435 psi
  • Application Air, Non-Potable Water, Steam
  • Fitting Connection Type Tube x R(PT)
  • Specific Fitting Shape 90 Degrees Elbow Adapter
  • Tube Fitting Material 316 Stainless Steel
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Tube Size 1/4 in
Pipe Size (Fittings) 1/4" x 1/4"
Pipe Size - Pipe Fitting 1/4 in
Hex Size 14 mm
Overall Length 20 3/16 mm
Fitting Side A Tube Outer Diameter 6 mm
Fitting Side B Pipe Size 1/4 in

Description

Male Elbow, Application Air, Non-Potable Water, Steam, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type MBSPT, Fitting Side B Pipe Size 1/4 in, Fitting Side A Tube Outer Diameter 6 mm, Fitting Material Stainless Steel, Material Grade 316, Color Silver, Includes Pre-Applied Thread Sealant Yes, Maximum Operating Pressure 145 psi, Maximum Operating Temperature 302 Degrees F, Overall Length 20 3/16 mm, Specific Fitting Shape 90 Degrees Elbow Adapter, Release Type Button
