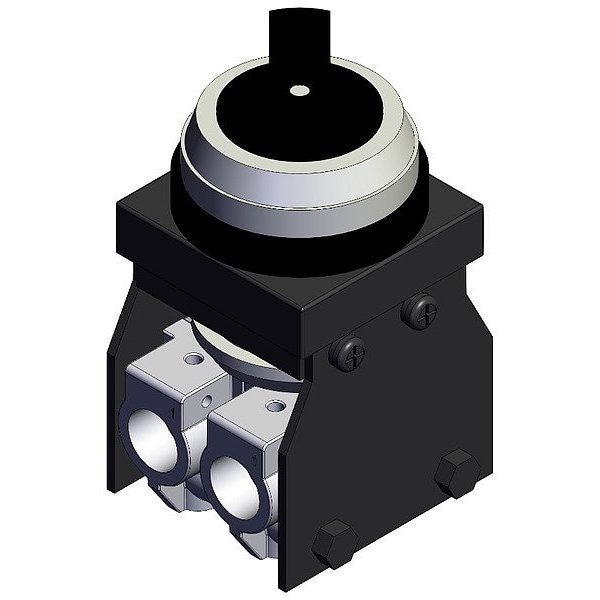

2/3 PORT MECHANICAL VALVE
Mfr # VM151-N01-35BA
Zoro # G515191573
product price: $45.19
/eaKey Features
Series
VM100
Number of Positions
Three-Position
Overall Height
78 1/2 mm
Overall Length
47 13/16 mm
Overall Width
44 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
VM151-N01-35BA
Zoro #
G515191573
UPC #
-
Country of Origin
Japan
Dimensions
Overall Height
78 1/2 mm
Overall Length
47 13/16 mm
Overall Width
44 mm
Valve Port Connection Size
1/8 in
Details
Item
Mechanical Valve
Series
VM100
Number of Positions
Three-Position
Body Material
Aluminum
Product Type
Manual Air Control Valve
Operating Temperature - Minimum
-5 Degrees C
Actuator Color
Black
Valve Port Connection Type
NPT
Standards
RoHS Compliant
Lubrication
Lubrication Not Required
Number of Ports
5
Operating Pressure - Maximum
1 MPa
For Media
Air
Operating Temperature - Maximum
60 Degrees C
Body Style
Side-Ported
Operating Pressure - Minimum
-100 kPa
Actuator Type
Twist
Actuator Positions
3
Description
PORT MECHANICAL VALVE 2/3
