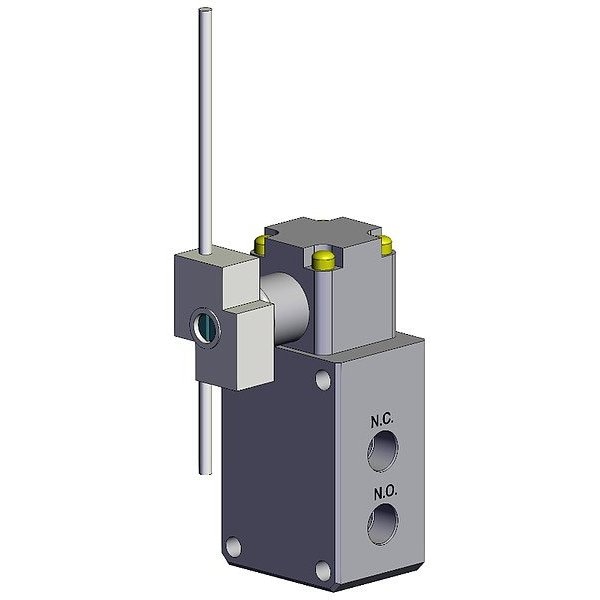

3 Port Mechanical Valve - Heavy Duty
Mfr # VM830-01-14
Zoro # G815191778
product price:Â
$
93.19
/ea
Key Features
Series
VM800
Overall Height
207 13/16 mm
Overall Length
40 mm
Overall Width
54 11/16 mm
Body Material
Aluminum
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- VM830-01-14
- Zoro #
- G815191778
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Overall Height
- 207 13/16 mm
- Overall Length
- 40 mm
- Overall Width
- 54 11/16 mm
- Valve Port Connection Size
- 1/8 in
- Wire Rope Length
- 40 mm
- Length
- 40 mm
Details
- Item
- Mechanical Valve
- Series
- VM800
- Body Material
- Aluminum
- Product Type
- Manual Air Control Valve
- Lubrication
- Lubrication Not Required
- Number of Ports
- 3
- Valve Type
- Spool
- Standards
- RoHS Compliant
- Operating Temperature - Minimum
- -5 Degrees C
- Operating Temperature - Maximum
- 60 Degrees C
- Operating Pressure - Maximum
- 1 MPa
- For Media
- Air
- Coefficient of Volume (Cv)
- 0.33
- Operating Pressure - Minimum
- -100 kPa
- Actuator Type
- Lever
- Valve Port Connection Type
- BSPT
Description
Port Mechanical Valve - Heavy Duty 3
