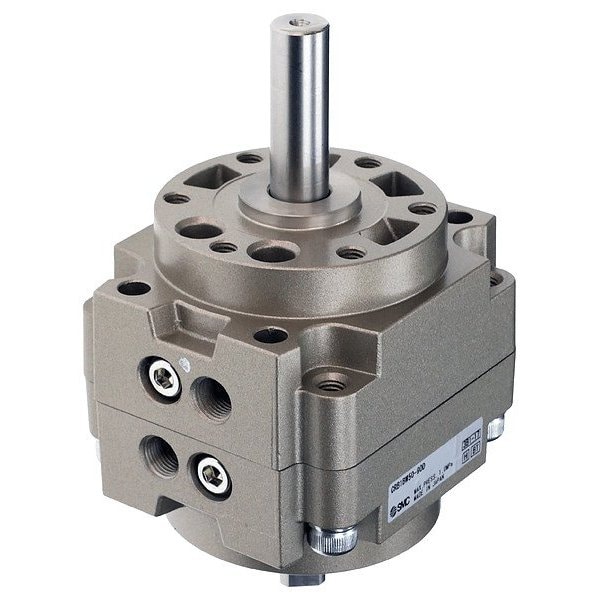

ACTUATOR, ROTARY, MINI/VANE
Mfr # CRB1BW50-90D
Zoro # G613344741
product price:Â
$
236.99
/ea
Free Shipping & Returns
Key Features
Overall Length
67 mm
Magnetic Piston
Non-Magnetic Piston
Cushion Type
Rubber Cushion
Standards
RoHS Compliant
Maximum Operating Temperature
140 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- CRB1BW50-90D
- Zoro #
- G613344741
- UPC #
- -
- Country of Origin
- Japan
- Item
- Rotary Actuator
- Magnetic Piston
- Non-Magnetic Piston
- Cushion Type
- Rubber Cushion
- Standards
- RoHS Compliant
- Maximum Operating Temperature
- 140 Degrees F
- Air Inlet Center to Center Distance
- 18 mm
- Actuator Style
- Double Vane
- Housing Material
- Aluminum Alloy
- System of Measurement
- Metric
- Air Inlet Type
- RC
- Keyway Type
- Parallel Key
- Maximum Output Torque
- 26 N-m
- Maximum Operating Pressure
- 145 psi
- Rotation Angle
- 90 Degrees
- Minimum Operating Pressure
- 21.76 psi
- Minimum Operating Temperature
- 41 Degrees F
- Output Shaft Type
- Keyed Shaft
- Weight
- 0.83 kg
- For Fluid Type
- Air
- Housing Material Finish
- Painted
- Mount Style
- Basic
- Port Location
- Side Ported
Description
Rotary Actuator, Actuator Style Double Vane, Maximum Output Torque 26 N-m, Rotation Angle 90 Degrees , Bore Diameter 50 mm, Maximum Operating Pressure 145 psi, Shaft Diameter 12 mm, Shaft Length 39.5 mm, Inlet Size 1/8 in, Air Inlet Type RC, Cushion Type Rubber Cushion, Magnetic Piston Non-Magnetic Piston, Weight 0.83 kg, Maximum Operating Temperature 140 Degrees F, Minimum Operating Pressure 21.76 psi, Minimum Operating Temperature 41 Degrees F, Standards RoHS Compliant, For Fluid Type Air
