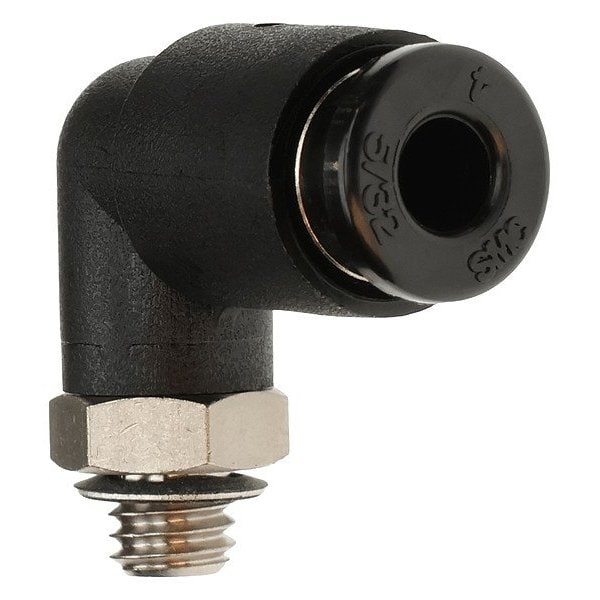

Antistatic Push-Fit Fitting, Elbow
- Mfr # KAL04-M5
- Zoro # G416245702
product price:Â
$
5.89
/ea
Sold in multiples of 2 for
$11.78
Key Features
Standards
RoHS
Application
Vacuum
Fitting Shape
Elbow
Color
Black
Operating Pressure - Maximum
1 MPa
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- KAL04-M5
- Zoro #
- G416245702
- UPC #
- -
- Country of Origin
- Japan
- Item
- Antistatic Push-Fit Fitting
- Standards
- RoHS
- Application
- Vacuum
- Fitting Shape
- Elbow
- Color
- Black
- Operating Pressure - Maximum
- 1 MPa
- Resistance Properties
- Flame-Resistant
- Release Type
- Button
- Operating Temperature - Maximum
- 104 Degrees F
- Series
- KA
- Compatible Tube Material
- PFA, Polyolefin, Polyurethane
- Fitting Material
- Polybutylene
- Operating Temperature - Minimum
- 32 Degrees F
- Connector Type
- Union
- Finish
- Nickel-Plated
- For Media Type
- Air
- Fitting Side 1 Connection Type
- Push-to-Connect
- Fitting Side 2 Connection Type
- UNF
- Includes Pre-Applied Thread Sealant
- Pre-Applied Thread Sealant Not Included
- Fitting Features
- Swivel
- Wire Color
- Black
Dimensions
- Fitting Thread Size
- M5x.08
- Center-to-End 1 Length
- 18 mm
- Center-to-End 2 Length
- 15 1/2 mm
- Fitting Side 1 Tube Outer Diameter
- 4 mm
- Overall Length
- 17 mm
- Fitting Side 2 Pipe Size
- 5 mm
- Wire Rope Length
- 17 mm
- Length
- 17 mm
Description
Fitting, Antistatic, Application Vacuum, Fitting Material Polybutylene, Fitting Thread Size M5x.08, Material Grade C3604, Color Black, Release Type Button, Standards RoHS, UL94, Compatible Tube Material Polyurethane, Nylon, Resistance Properties Flame-Resistant, System of Measurement Metric
