Shop SMC

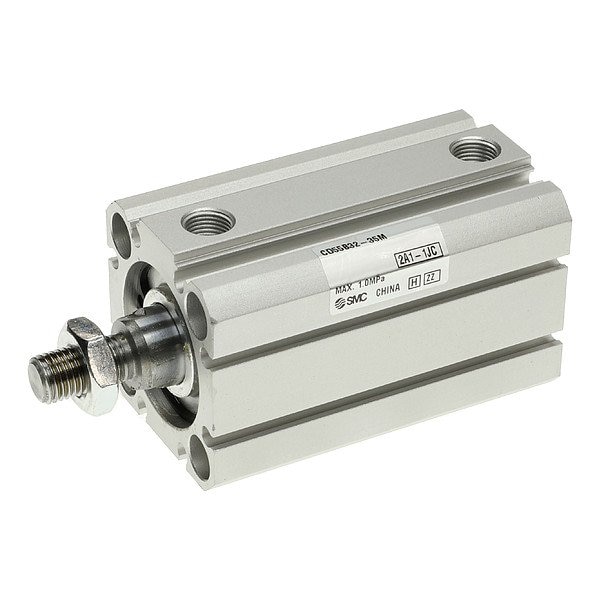

Cyl, Compact, ISO, Auto Sw Capable

  • Mfr # CD55B32-20M

  • Zoro # G213345131

product price:
$
77.19
/ea

Key Features

Cylinder Action
Double Acting
Body Material
Aluminum
Rod Thread Length
19 mm
Cylinder Type
Compact
Magnetic Piston
Magnetic Piston
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
CD55B32-20M
Zoro #
G213345131
UPC #
-
Country of Origin
China
Cylinder Action
Double Acting
Item
Compact Cylinder
Body Material
Aluminum
Cylinder Type
Compact
Magnetic Piston
Magnetic Piston
Piston Rod Material
Carbon Steel
Cushion Type
Rubber Cushion
Standards
ISO 21287, ISO 6431, RoHS Compliant
Piston Material
Aluminum
For Fluid Type
Air
Cylinder Repair
Non-Repairable
Rod Rotation
Rotating Rod
Mounting Orientation
Horizontal, Vertical
Actuation Type
Air Extend, Air Retract
Air Inlet Type
G
Piston Rod Material Finish
Chrome Plated
Minimum Operating Temperature
14 Degrees F
Weight
0.32 kg
Series
C55
System of Measurement
Metric
Air Inlet Center to Center Distance
44.5 mm
Lead Wire Type
No Lead Wire
Rod Gender
Male
Inlet Gender
Female
Body Material Finish
Anodized
Minimum Operating Pressure
7.25 MPa
Number of Rods
Single Rod
Maximum Operating Pressure
145 MPa
Maximum Operating Temperature
158 Degrees F
Piston Material Finish
Chromate Coated

Description

Compact Cylinder, Body Material Aluminum, Cylinder Type Compact, Cylinder Repair Non-Repairable, Magnetic Piston Magnetic Piston, Mounting Type Tapped Hole, Through Hole, Bore Diameter 32 mm, Cushion Type Rubber Cushion, Stroke Length 20 mm, Inlet Size 1/8 in, Air Inlet Type G, Spring Retraction Force Not Applicable, Cylinder Action Double Acting, Number of Rods Single Rod, System of Measurement Metric, Body Material Finish Anodized, Piston Rod Material Finish Chrome Plated
