Shop SMC

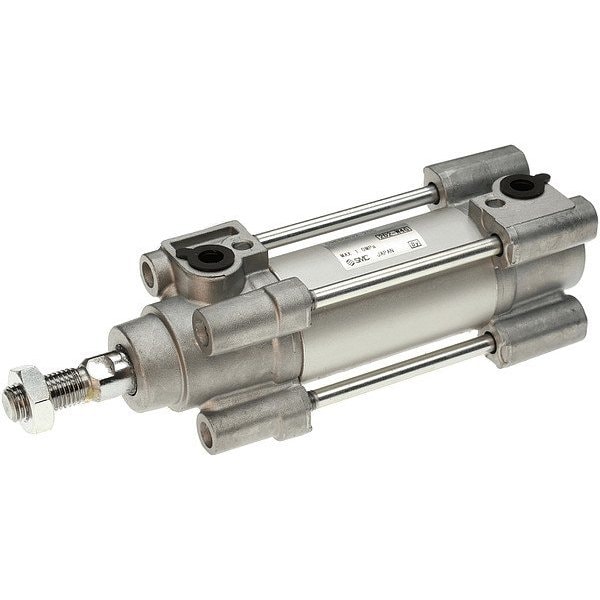

CYLINDER, TIE ROD

  • Mfr # C96SDB32-50C

  • Zoro # G114534856

product price:
$
115.99
/ea
Free Shipping & Returns

Key Features

Cylinder Action
Double Acting
Body Material
Aluminum
Rod Thread Length
22 mm
Cylinder Type
Tie Rod
Magnetic Piston
Magnetic Piston
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
C96SDB32-50C
Zoro #
G114534856
UPC #
-
Country of Origin
Japan
Item
Tie Rod Cylinder
Cylinder Action
Double Acting
Body Material
Aluminum
Cylinder Type
Tie Rod
Magnetic Piston
Magnetic Piston
System of Measurement
Metric
End Cap Material
Aluminum
Piston Rod Material
Carbon Steel
Series
C96
Standards
ISO 15552, RoHS Compliant
Maximum Operating Pressure
145 MPa
Piston Rod Material Finish
Chrome Plated
Maximum Operating Temperature
158 Degrees F
Weight
0.43 kg
For Fluid Type
Air
Air Inlet Type
G
Number of Rods
Single Rod
Minimum Operating Pressure
7.25 MPa
Cushion Type
Air Cushion, Bumpers
Minimum Operating Temperature
-4 Degrees F
Tie Rod Material
Carbon Steel
Body Material Finish
Anodized
Piston Material
Aluminum
Inlet Gender
Female
Cylinder Repair
Non-Repairable
Actuation Type
Air Extend, Air Retract
Air Inlet Center to Center Distance
118 mm
Rod Gender
Male
Lead Wire Type
No Lead Wire
Rod Rotation
Rotating Rod
Mounting Orientation
Horizontal, Vertical

Description

Tie Rod Cylinder, Body Material Aluminum, Cylinder Type Tie Rod, Cylinder Repair Non-Repairable, Magnetic Piston Magnetic Piston, Mounting Type Tapped Hole, Bore Diameter 32 mm, Cushion Type Air Cushion, Bumpers, Stroke Length 50 mm, Inlet Size 1/8 in, Air Inlet Type G, Spring Retraction Force Not Applicable, Cylinder Action Double Acting, Number of Rods Single Rod, System of Measurement Metric, Body Material Finish Anodized, Piston Rod Material Finish Chrome Plated, Mounting Location Front
